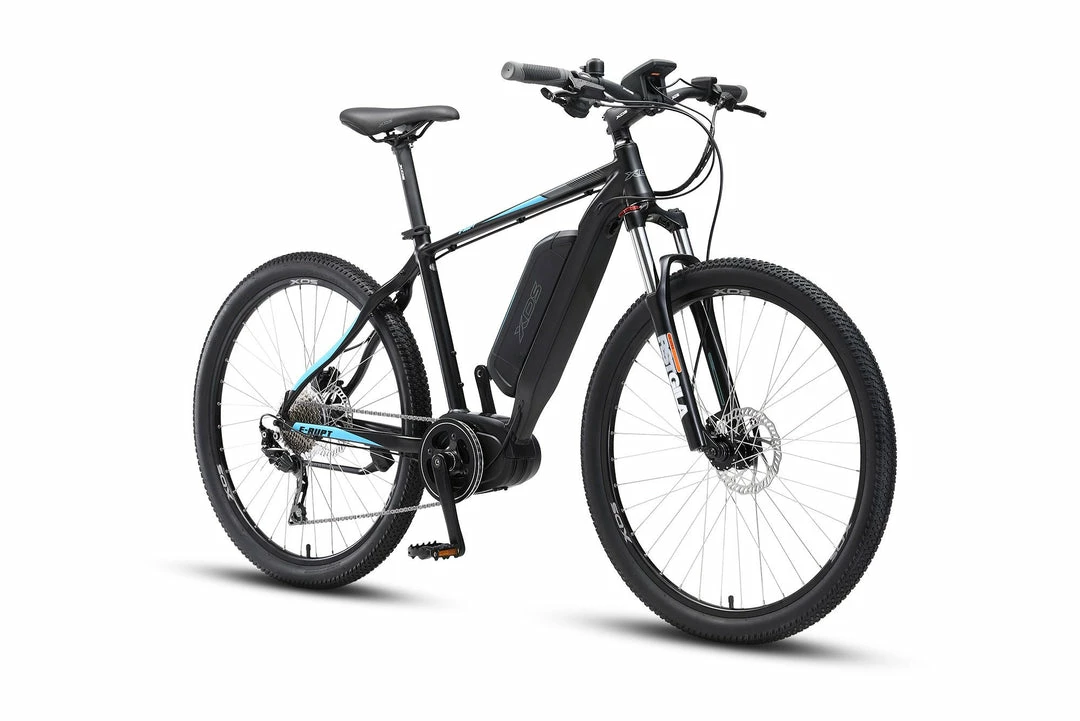

New 👏 XDS E Rupt – Bafang Mid Drive ❤️

Frame Sizes: 16.5″, 18.5″,20.5″

Frame: RST Gila TNL alloy suspension 27.5″φ28.6×φ25.4×186mm Blk

Fork: RST Volant T 700C φ28.6×φ25.4×φ30×209mm W/TNL LOCK-OUT

Handlebar: XDS Alloy W:680mm 5° H：25mm φ31.8mm Blk

Grips: Rubber L=130mm Grey/Blk

Stem: XDS Alloy φ28.6mm E:80mm H:43mm 7° ￠31.8mm Blk

Seatpost: XDS Alloy ￠31.6×350mm Blk

Seat Clamp: XDS Alloy φ34.9mm W/QR Blk

Saddle: VELO NP4-01 Blk

Pedals: VP 9/16″ CR-MO axle

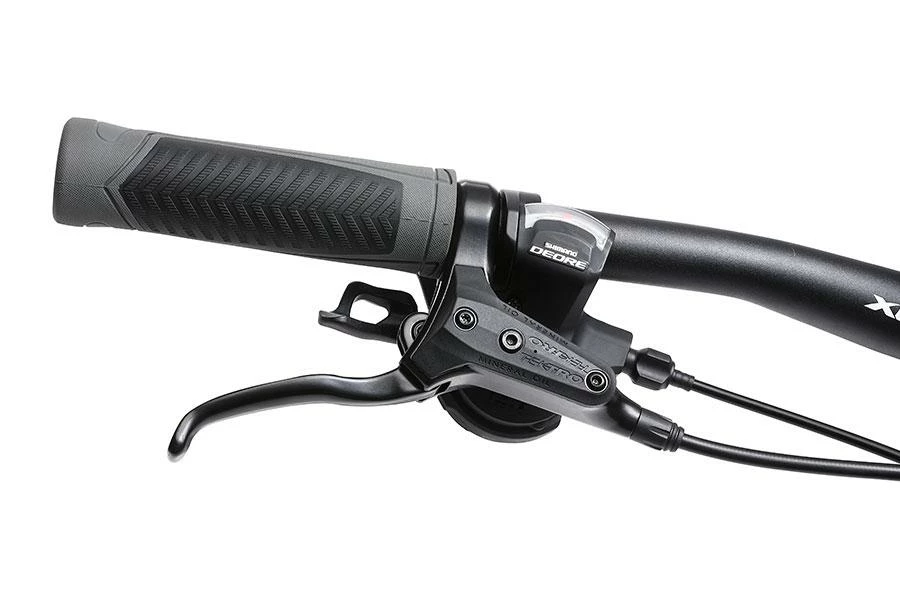

Gear Shifters: SHIMANO Deore M610 R 10-SP index, casing:2050mm

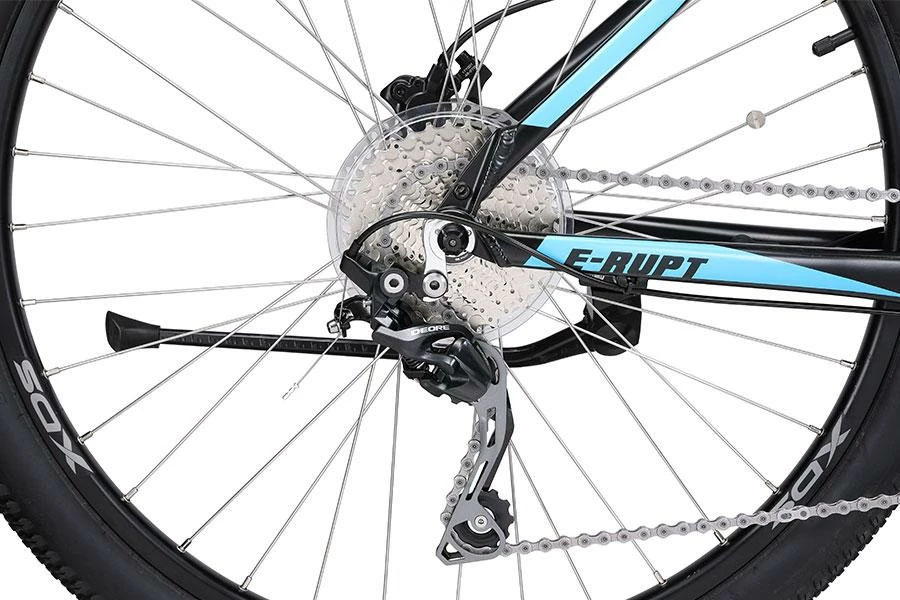

Rear Derailleur: SHIMANO Deore hanger 10-SP index

Brakes: TEKTRO HD M285 F/R HYDRAULIC DISC BRAKE ,DISC F/R:TR160-24(￠160mm)Brake LeversN/A

Freewheel: SHIMANO HG500 Cassette sprocket-10, 10-SPD, 11-13-15-17-19-21-23-26-30-34,

Chainwheel & Cranks: BAFANG 11/128″,38T, Chain Line:49mm BlkCrank left BAFANG CK A01 170 9/16″,L=170L,W/M8*1.0P*15L*1 BlkCrank rightBAFANG CK A01 170 9/16″,L=170L,W/M8*1.0P*15L*1 Blk

Chain: KMC 1/2″×11/128″ 120L 10-SPChainguardN/A

Headset: FP Steel φ28.6×φ44×φ30mm 10PCS H=22 BLACK W/O LOGO

Front Hub: J/ TECH DO41 14G×36H M9×100×108mm W/QR-270-F :115mm Blk

Rear HubJ: / TECH D142 14G×36H M10×135×145 8/9/10-SP W/QR-270-:151mm Blk

Spokes: 14G Stainless

Tyre: WTB W110-0925 700C×37C FOLDINGTube700C×35C A/V

Rim: XDS Alloy DX17 700C×622×17×14G×36H A/V HOLE H=18.2 Blk

Mudguards: SP-50C-700C-03F F/R 700C W=50mm ￠4mm Blk

Bell: Alloy/ Plastic ￠22.2RackAlloy / Steel 700C H:320.4mm BlkBasketN/A

Kickstand: Alloy 700C Adjustable 24″-28″ Blk

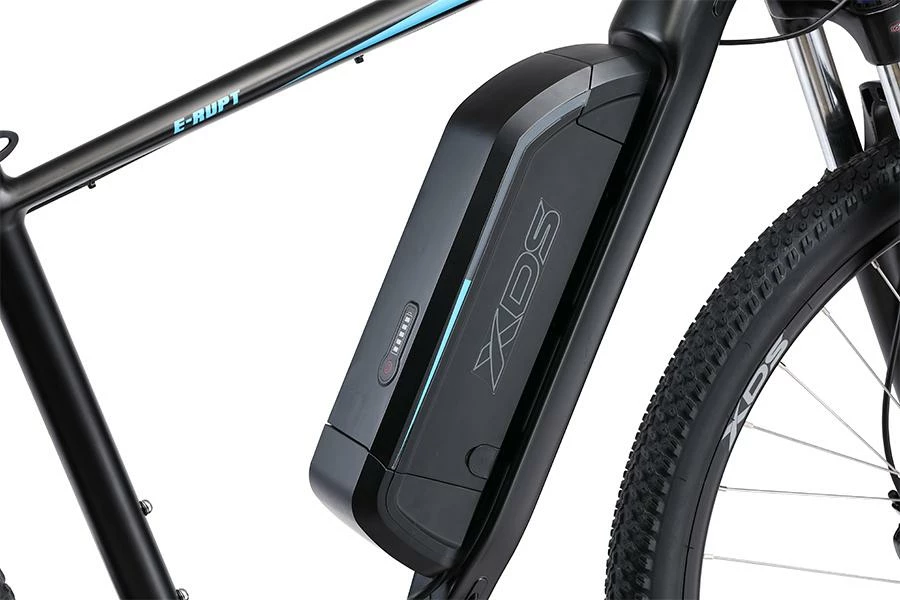

BatteryPHYLION SF-06 36V/11.6Ah，PANASONIC 2900mAh cell, W/Intelligent protection board,W/communication, AUDisplayBAFANG DP CO7.UART LCD Display, DC 36V, 0-5 Modes, UART communication, W/Walk Boost, W/light switchSensorBAFANG SR SD02.01 Sensor, 1 Pulse, 5V, 500mmChargerPHYLION CZ2AG7J24GS CE 100-240V 1.6A(MAX)50/60HZ output:42V 2A AU Plug AUMotorBAFANG MM G330 25036V/250W, Limit 25km/h, CL:49mm, W/controller, W/ battery communication, AUMotor CableBAFANG MMG33 600mm
