Buy 😀 TERN VEKTRON S10 PERFORMANCE Folding And Compact Ebikes ❤️

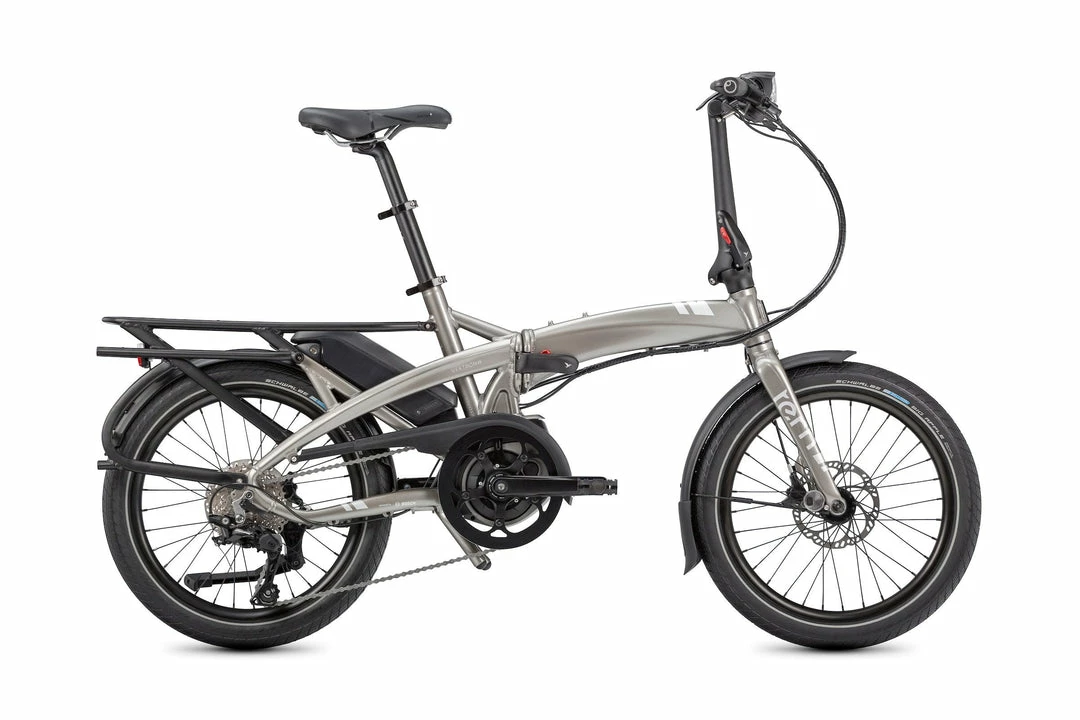

The Tern Vektron S10 is a best-in-class electric bike that features a Bosch Performance Line Plus electric motor for more torque and smoother acceleration. The S10 is often called the best folding eBike on the market and the updated version gets even better with improved geometry, Bosch’s newest and virtually silent motor, and a burly, extended rack. With a Vektron, a lot of your car trips will start turning into bike trips.

Why do we love this bike?

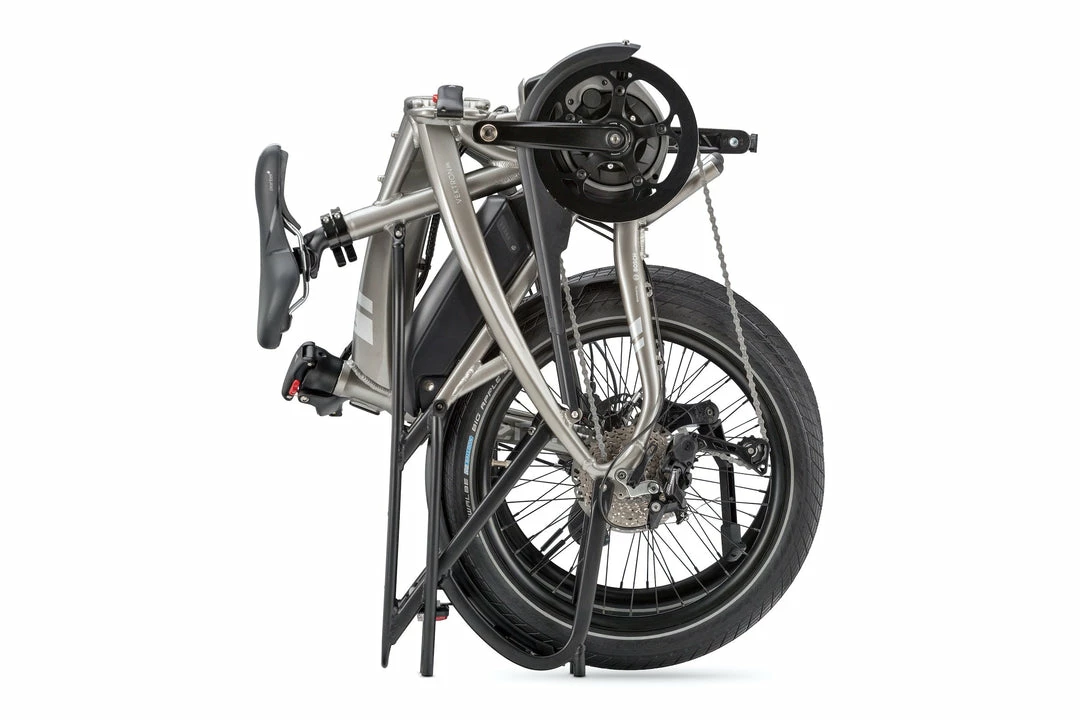

• Fast & simple folding
• Compact & easy to store
• Bosch-powered technology
• Range of 50-130 km
• Uni-size – adjusts to fit multiple riders
• Updated frame design for a better ride
• Integrated rear rack & kid compatible

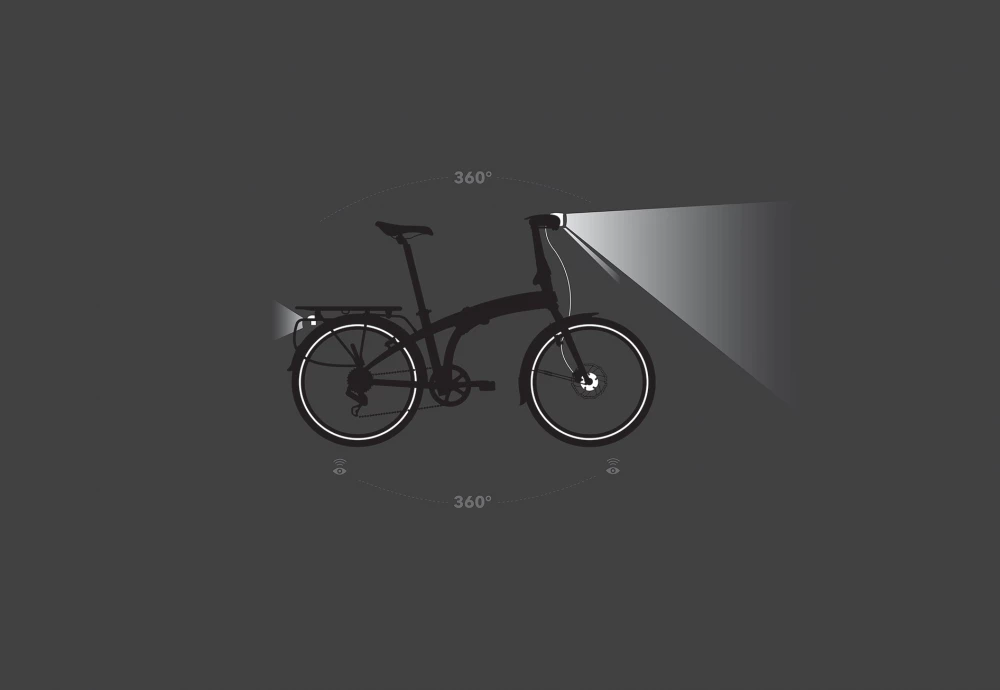

• Integrated front & rear lights
• Fits easily on buses, trains and taxis

Technology

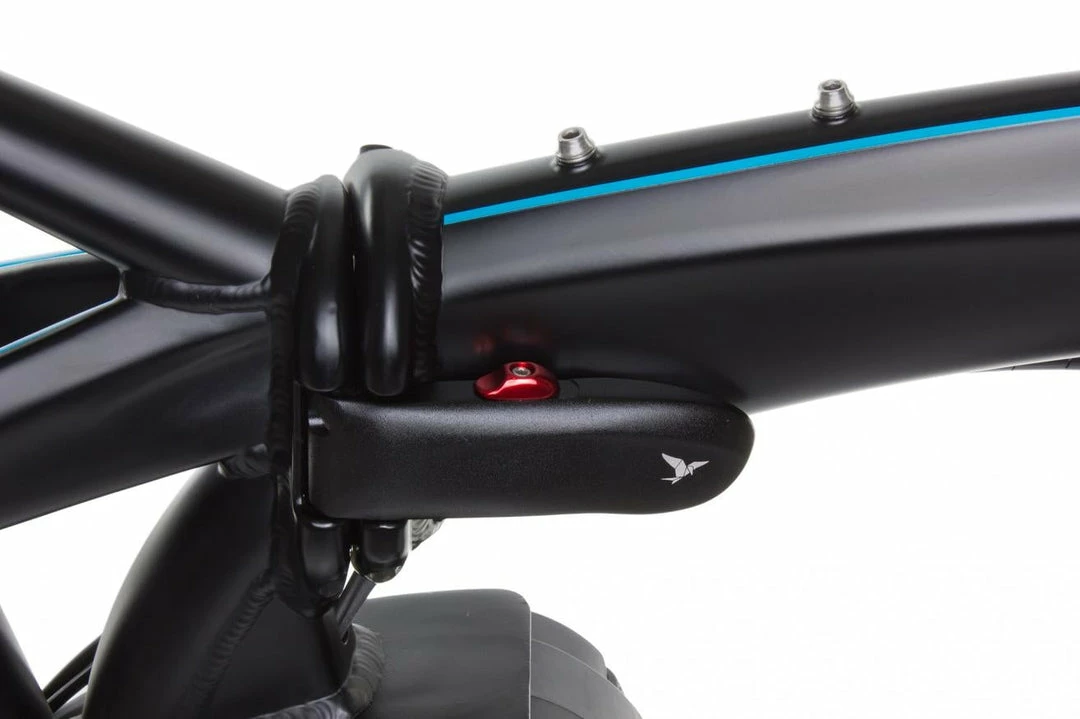

OCL+™N FRAME JOINT
ROBUST FOLDING TECHNOLOGY

A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210
and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern
Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and
robust gussets, so it stays stiff and strong during even the fastest commutes.

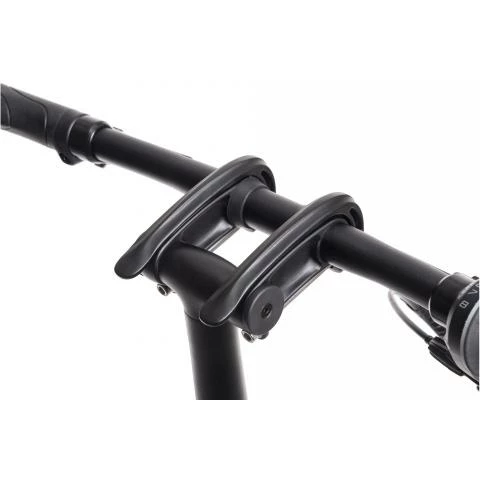

ANDROS STEM
ADJUST TO FIT

The Andros is our patented adjustable stem that lets you set your handlebars where you want-no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Androsmakes your bike fit.

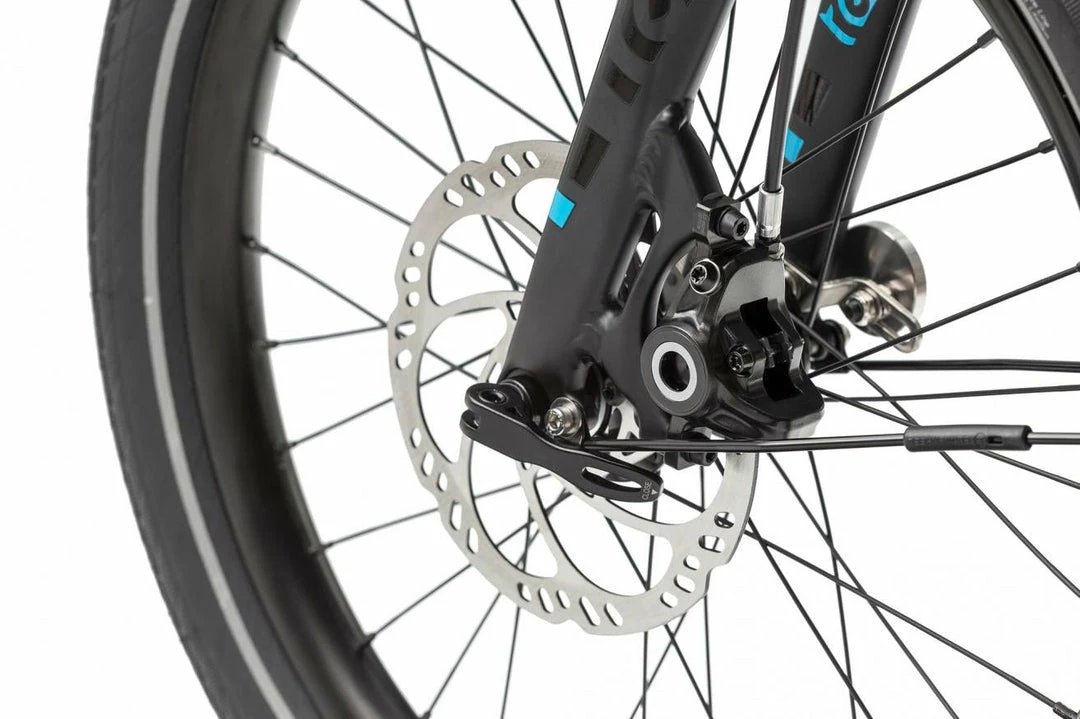

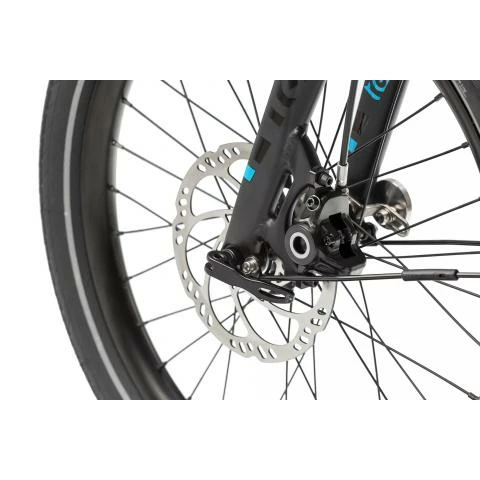

MAGURA MT4 HYDRAULIC DISC BRAKES
FULL STOP

Hydraulic disc brakes give you excellent stopping power, working effortlessly even in rain, snow, or mud. All it takes is the gentle pull of just two fingers. With mineral oil-based brake fluid that is gentler on the environment than most hydraulic brake fluids, and Magura’s Easy Bleed Technology, your Vektron is read for a safer ride

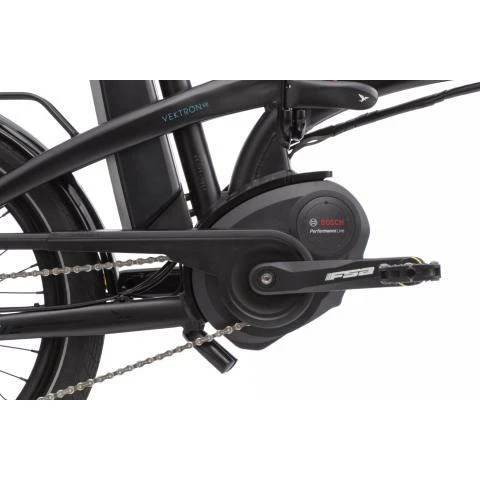

BOSCH PERFORMANCE DRIVE UNIT
POWER TRIP

Electric bikes make it easy to ride from A to B. Where it gets interesting? When you’re inspired to visit the rest of the alphabet. The Bosch Performance Drive Unit offers a fine- tuned balance between torque and range. It takes the burden out of hauling kids and groceries. With up to 100 km of range with a standard 400 Wh battery, it’s the market leader in bike technology.

BOSCH POWERPACK BATTERY
FEATHER LIGHT POWERHOUSE

This impressive high-energy, high-power cell clips on and off your bike. The best-in-class design charges fast-from zero-in only 2.5 to 3.5 hours, and lets you ride longer and further between charges. You’ll be impressed by its long lifespan, light weight, and ease of charging. PowerPacks are available in 300/400/500 Wh variants, so you can forget about range anxiety.

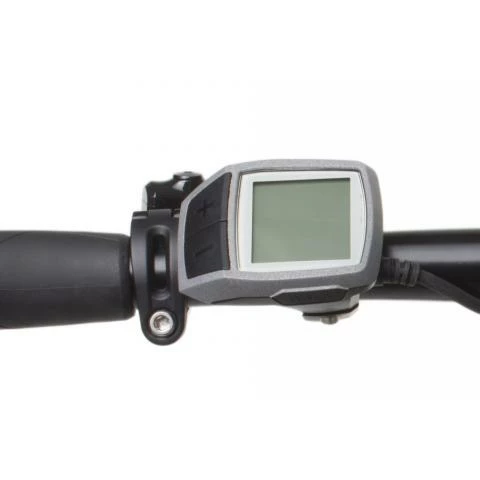

BOSCH PURION CONTROL PANEL
COMPACT CONTROL CENTER

The on-board computer lets you switch between five different riding modes, and feeds you handy information like speed, battery level, and distance. It optimises shifting actions and constantly updates you on the remaining range, just like a typical German car. Best of all, it’s now more compact and robust than ever.

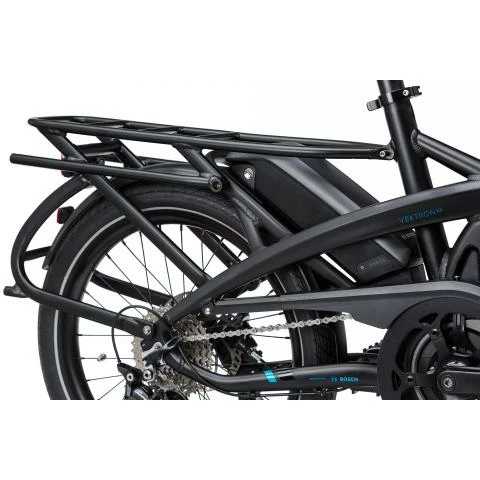

ATLAS V RACK
AN ULTRA ROBUST RACK WITH GSDNA

With structural cues from the heavy-duty Tern GSD, the new Atlas V Rack™M has been massively strengthened and increased in size, with a load capacity of 27 kg (59 lb). This reduces flex for more secure handling when the bike is loaded. Riding with your little one? Add a Thule Yepp Maxi or Nexxt Maxi child seat-no adapters needed. The Atlas V RackTM is also KLICKfix-compatible, and can hold panniers of different sizes-including the Bucketload Pannier, which was designed to fit every configuration of the Vektron

Specs

GENERAL INFO

SPEEDS:1 x 10
WEIGHT:22.1 kg (48.7 lb)
GEAR INCHES:30″ – 97″ (2.36 – 7.72 m)
FOLDING SIZE:41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
FOLDING TIME:10 sec
FRAME SIZES:One size
DISTANCE SEATPOST TO HANDLEBAR:62 – 69 cm (24.4 – 27.2 in)
DISTANCE SADDLE TO PEDAL:67 – 110 cm (26.4 – 43.3 in)
SUGGESTED RIDER HEIGHT:147 – 195 cm (57.9 – 76.8 in)
MAX GROSS VEHICLE WEIGHT:125 kg (275.6 lb)
MAX RIDER WEIGHT:105 kg (231.5 lb)

FRAME
FRAME:Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK:Tern Tarsus, 6061-Al, hydroformed

COCKPIT
HANDLEPOST:Tern Physis 3D, 3D forged, 5 patented technologies

STEM:Tern Andros, adjustable, forged construction, patented technology
HEADSET:Flux Pro, angular contact bearings, Physis integrated
HANDLEBAR:Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:Ergon

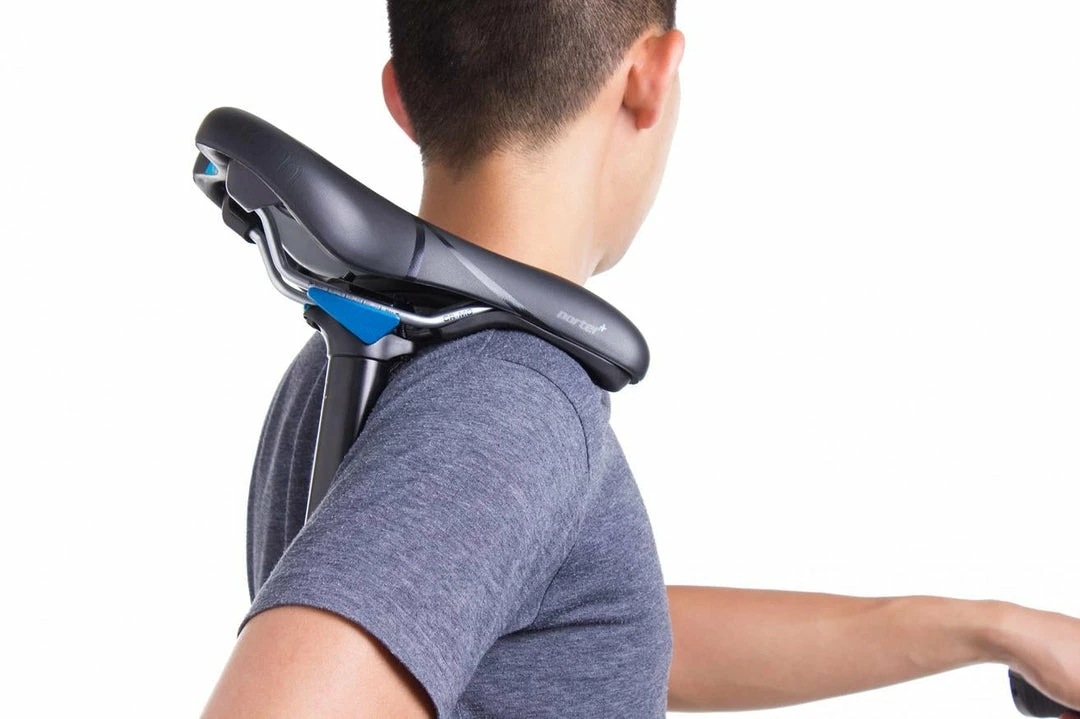

SADDLE:Tern Porter+, patented GripPad design, PrimeGel padding
SEATPOST:Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:Tern Collar, 6061-AL, 2pc

BRAKES
FRONT BRAKE:Magura MT4, hydraulic disc
REAR BRAKE:Magura MT4, hydraulic disc
BRAKE LEVERS:Magura, hydraulic disc
BRAKE CABLE & HOUSING:Magura, hydraulic disc

WHEELS
FRONT HUB:Novatec, sealed cartridge bearing, disc
REAR HUB:Novatec, sealed cartridge bearing, disc
SPOKES AND NIPPLES:Stainless steel, double-butted
RIMS:Kinetix Comp, for disc

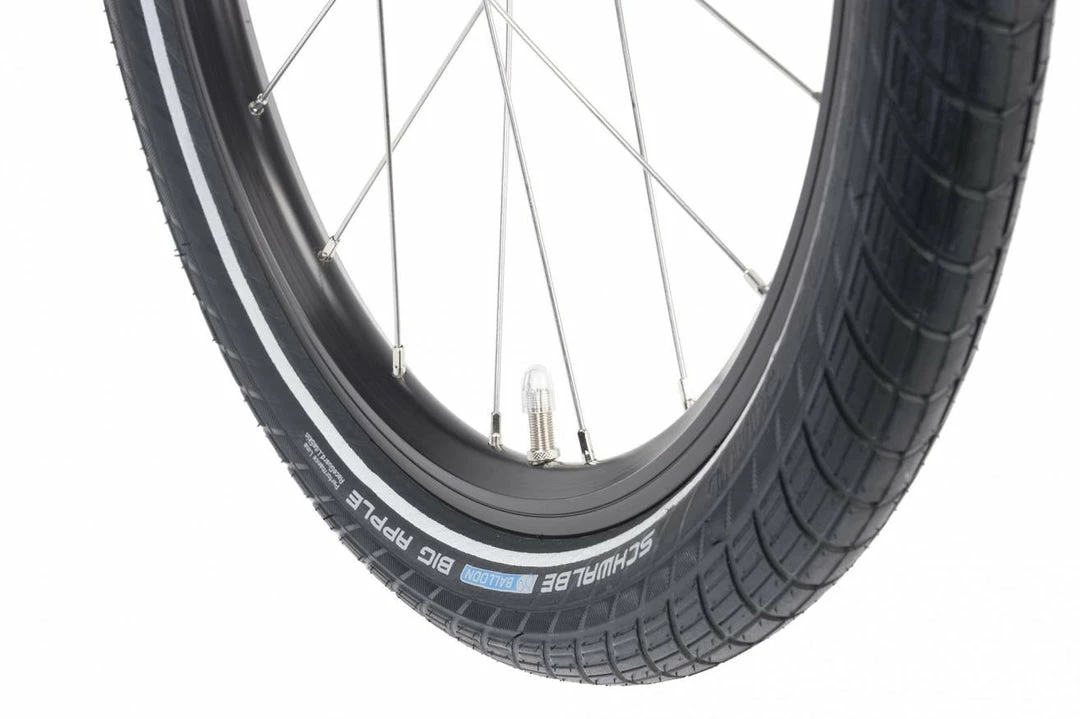

TIRES:Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

TRANSMISSION
SHIFTER(S):Shimano Deore, 1 x 10 spd

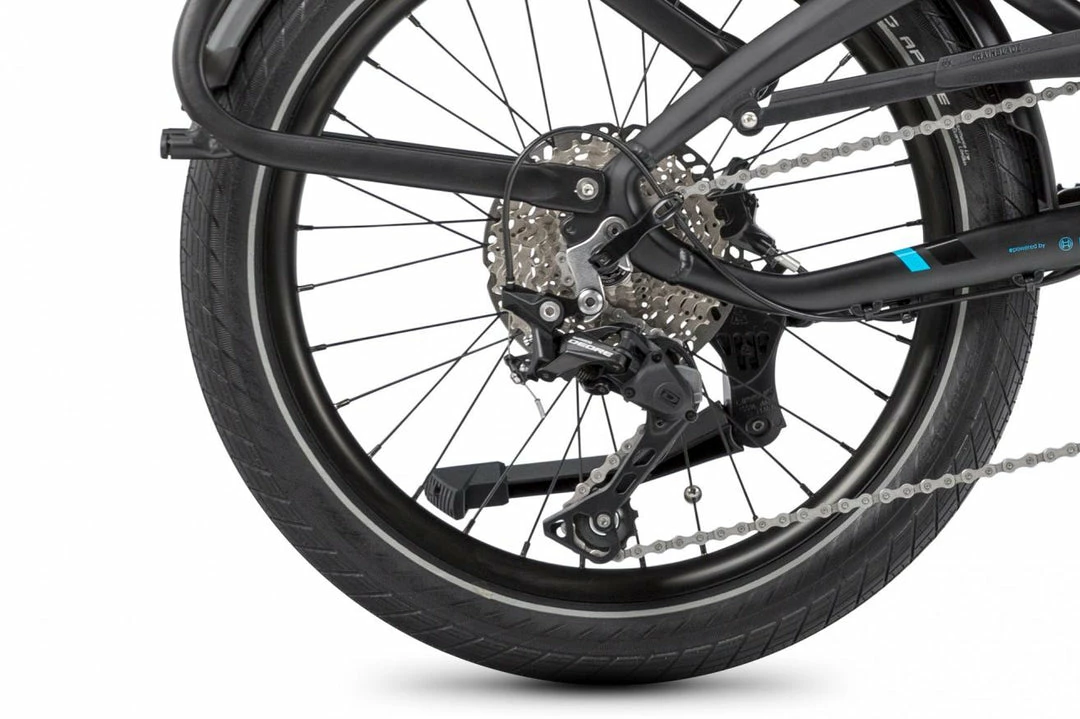

REAR DERAILLEUR:Shimano Deore Shadow+
CRANKSET:Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:Shimano 11-36T, 10 spd
BOTTOM BRACKET:Motor integrated
CHAIN:10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:MKS EZY
SHIFTER CABLE & HOUSING:Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR:Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph
BATTERY:Bosch PowerPack 400 Wh
DISPLAY:Bosch Purion, 4 mode selectable, walk assist
RANGE:400 Wh: 53 -106 km

ACCESSORIES
BELL:Aluminum
CHAINGUARD:SKS Chainblade
KICKSTAND:URSUS, rear mount
CLIP SYSTEM:Magnetix 3.0
LUGGAGE SOCKET:Yes
FRONT LIGHT:Tern Valo Direct, 190 lumens
REAR LIGHT:Herrmans H-Trace, for eBike
FENDERS:SKS, stainless hardware
RACK(S):Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg
