We designed Gain to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road.
Every drop of sweat, every pedal stroke ignites the Gain so you can add more kilometers. Its seamless and integrated interfaces are modern and intuitive. The bike is designed to enhance your experience by minimizing distractions so it’s just you, Gain and hours of road ahead.

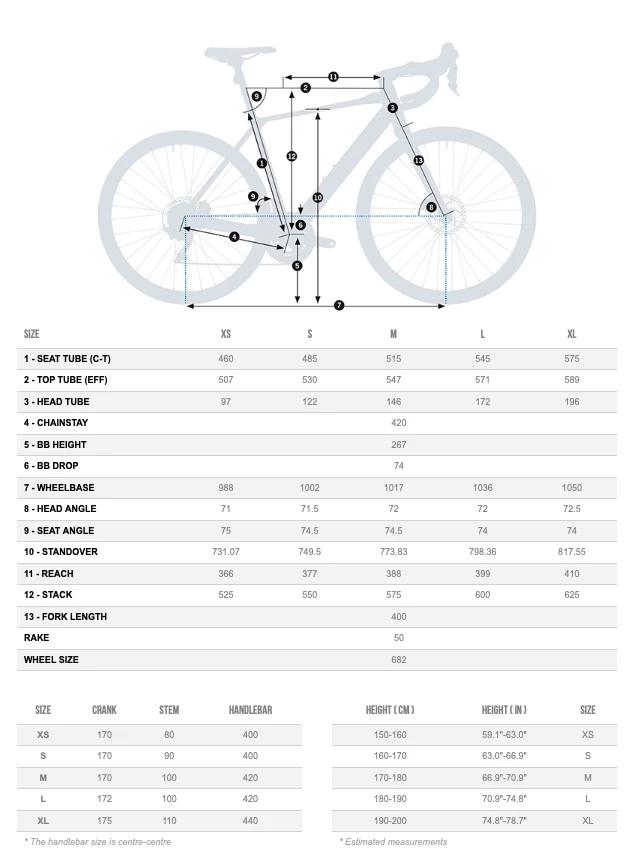

ORBEA ENDURANCE GEOMETRY
Orbea Endurance Geometry is born from years of analyzing how ergonomics can help you ride further. Unlike a racing geometry that is focused on aerodynamics, endurance ergonomics result in a bike that is easier to ride and increases stamina. Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to maximize rider comfort – and more comfort means longer rides.
DYNAMIC STRUCTURE

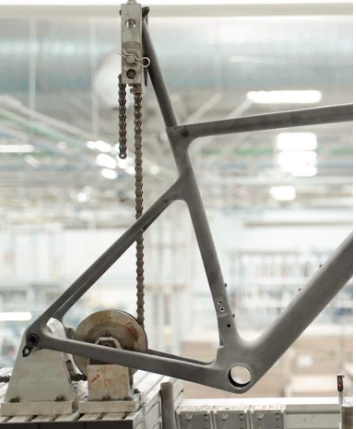

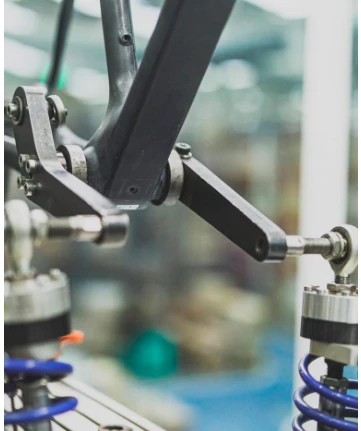

STIFFNESS
The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays resist twisting and transmit power to the rear wheel. There is no doubt about it, resistance to flex in the bottom of the frame translates directly to more watts to the wheel and a sensation that power transfer is instantaneous.
SMOOTHNESS
Carbon structure, tubing shapes and frame design are elemental to building a comfortable frame that helps reduce muscle fatigue. The natural flex patterns created by the carbon layup and minimal bulk of the top tube and seat stays deliver a dynamic, smooth ride that feels like floating over rough roads. The sensation is subtle – but it is noticeable and can be tested. And at the end of a long day it could mean the difference between climbing one last col and climbing off the bike.
About Vibe
INTEGRATION

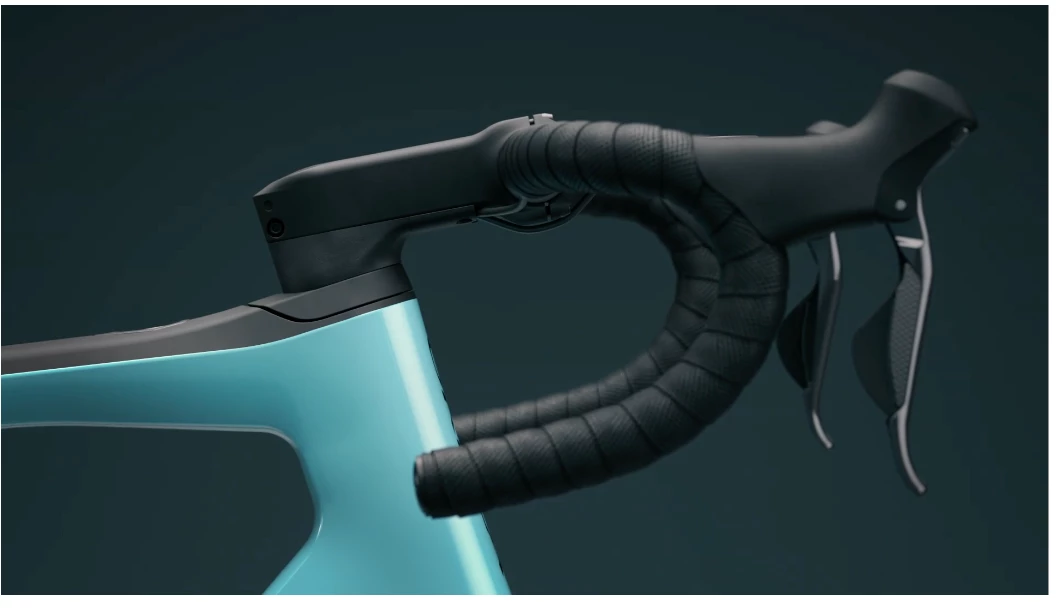

ICR PLUS

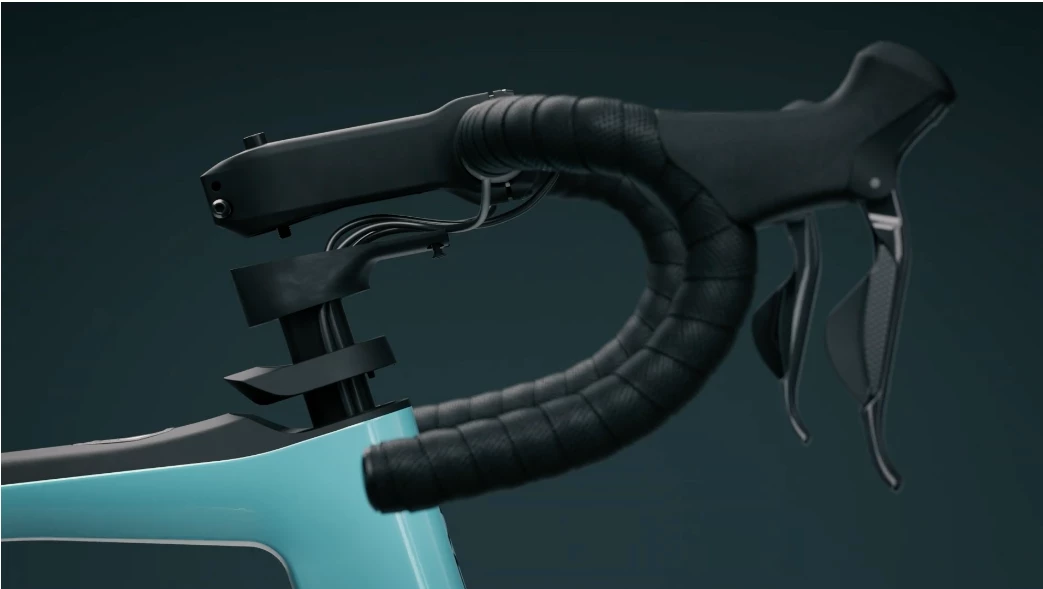

Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment. The entire Orbea road line offers this clean solution with OC Integrated stems and cable covers.

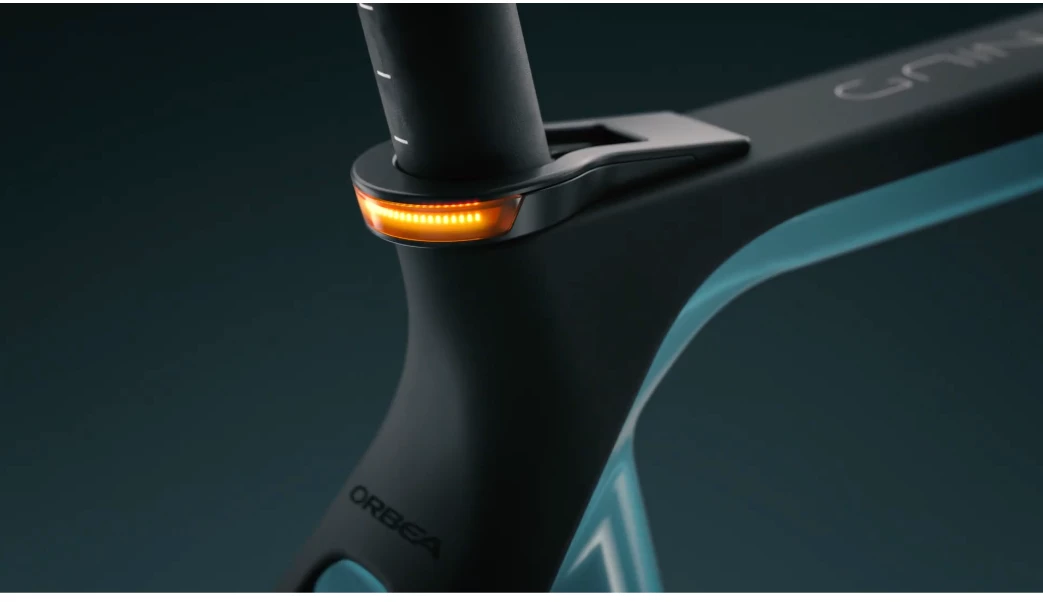

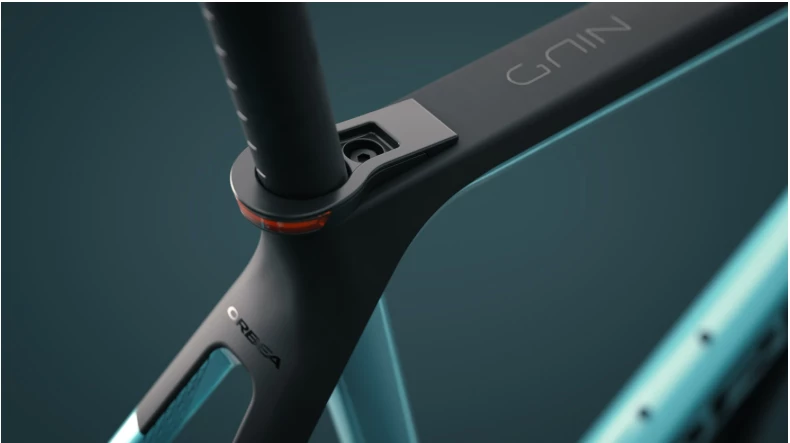

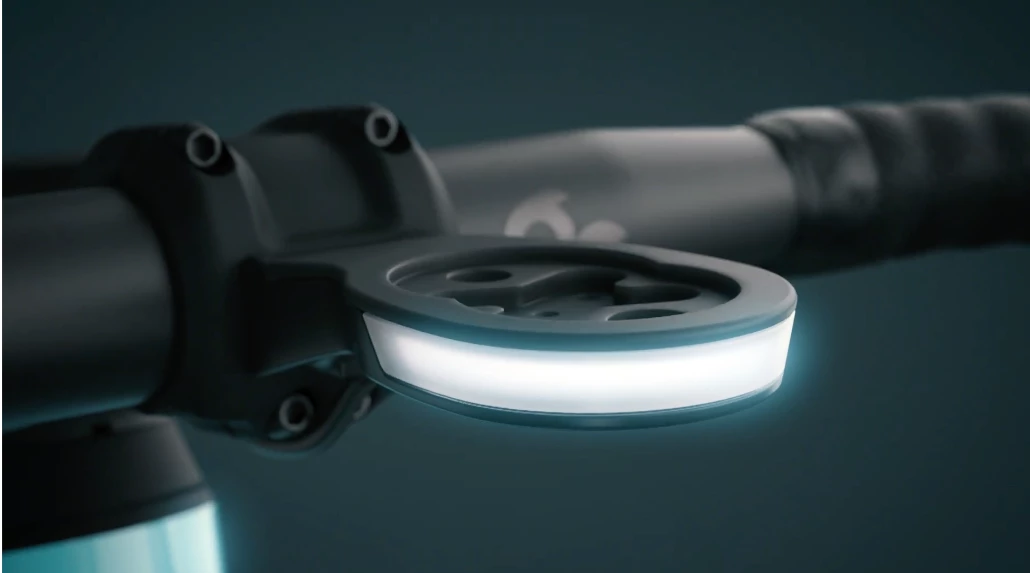

INTEGRATED LIGHTS
It’s like magic – Fully integrated lighting is just one more feature to enhance your ride. Gain is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Gain is ready for the road.
INTEGRATED COVERS

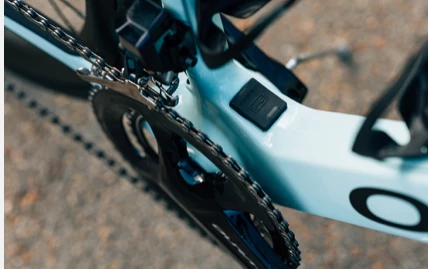

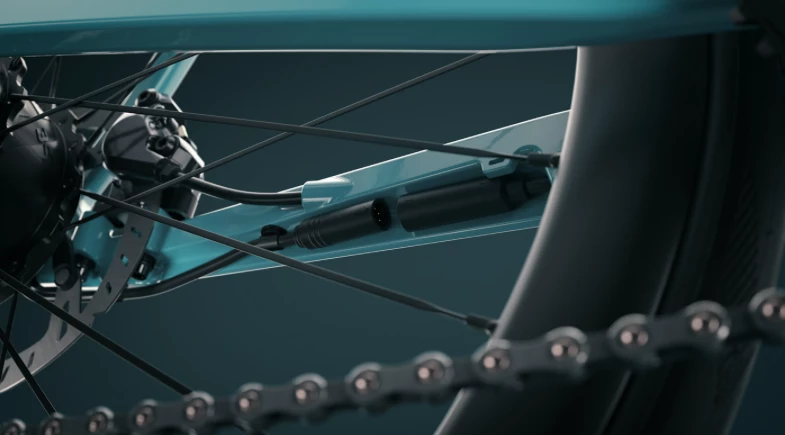

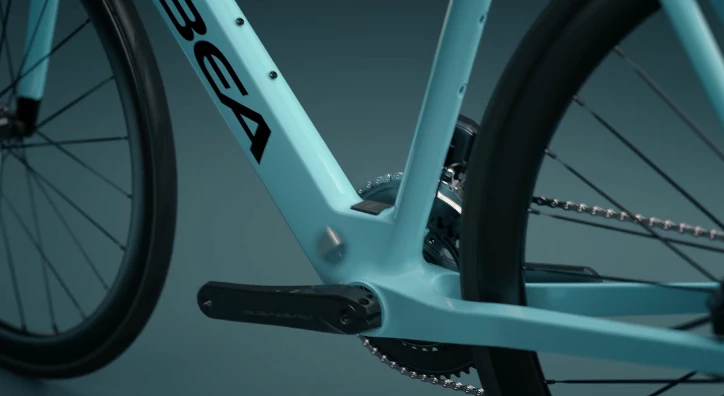

Gain has only one external wire connection, allowing the rear wheel to be removed from the bike. This cable is tucked neatly under the chainstay and hidden with a smoothly-integrated cover. The battery access port under the BB is similarly invisible, and the headset cover blends neatly into the top tube. After all, what’s the point of designing a great-riding bike and forgetting the design details?
TECHNOLOGIES
EBIKEMOTION X35 PLUS
The Gain motor is the heart of the bike and the key component behind the Enough Energy concept. Its sophisticated transmission system provides smooth, balanced and reliable pedaling assistance in levels that allow you to improve your rides without making it too easy. And since the motor is located on the wheel axle, not the bottom bracket, you’ll enjoy pedaling without resistance when the power assist is off. The Gain’s torque simulation algorithm allows the bike to match power input per pedal stroke in order to generate more power when it’s needed and conserve it when it’s not.
36V–250W
MAX TORQUE 40N.M
MAX SPEED 25KM/H
WEIGHT 2.1KG

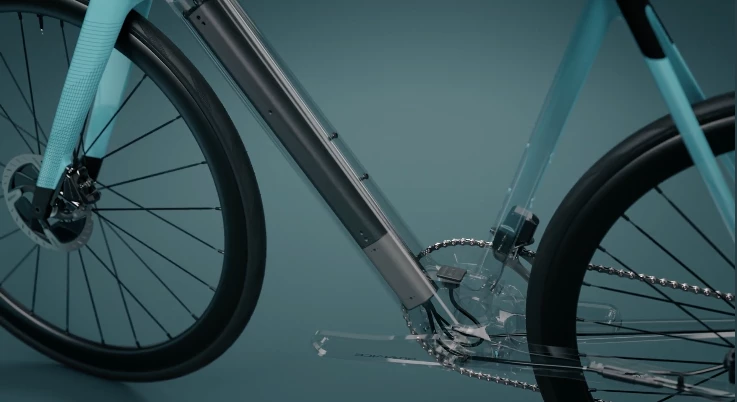

X35 BATTERY – INTERNAL BATTERY
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Gain’s Enough Range battery provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
36V 250WH PANASONIC BATTERY
BALANCED WEIGHT DISTRIBUTION
RANGE EXTENDER
The Gain is designed for long rides, but there may be some days that require more: more time on the bike, more elevation gain… The Range Extender, Gain’s external charger, integrates perfectly into the bottle cage and powers you up with even more autonomy.
When added to the Ebikemotion X35 system, the extender charges the bike’s main battery and provides an additional 208 W/h to the 248W/h capacity of the internal battery. This brings the system battery size to over 450W/h, giving a 70% boost in range.
X35 INTERFACE
IWOC ONE AND DISPLAY

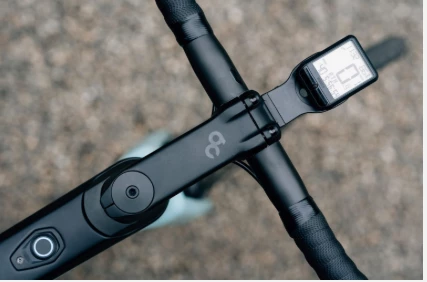

Gain’s control center is an attractive and discreet button on the top tube and a cycle computer mounted on the stem. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge. Colored LED lighting puts all the information you need right at your fingertips.
- Battery & assist level
- Smart & compact
CHARGING PORT
Gain doesn’t require a multitude of wires, ports or accessories. The CAN (Controller Area Network) bus port provides a single interface for charging, system diagnosis or attaching the Range Extender.
- Single port for charger and Range Extender
- Coded connection
- Max. 2A for charging
- System diagnosis via CAN, computer or Bluetooth

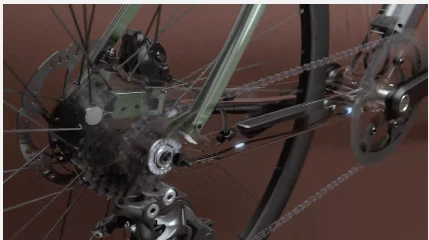

PAS SENSOR

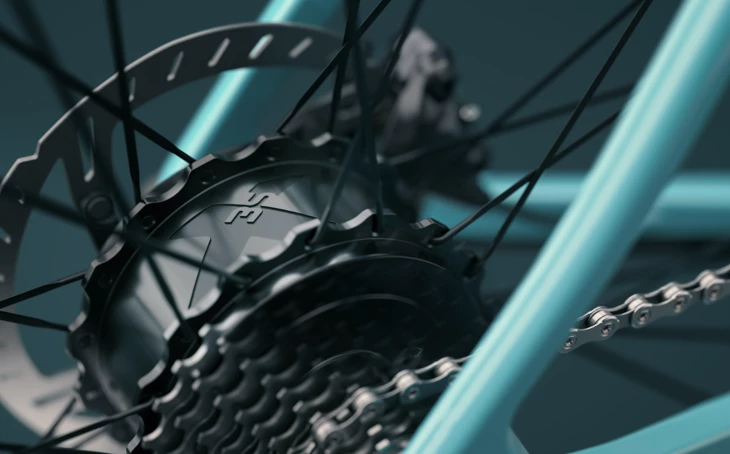

Gain’s smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.
- 40 Pulses per revolution
- Magnetized lock ring sensor
- Proprietary Algorithm & Electronics

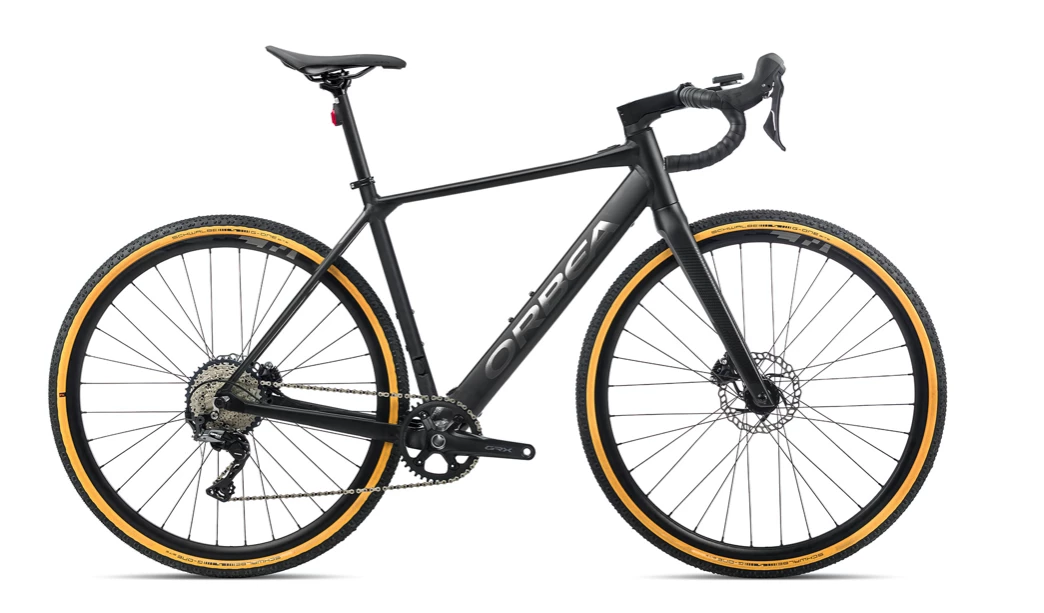

Specs

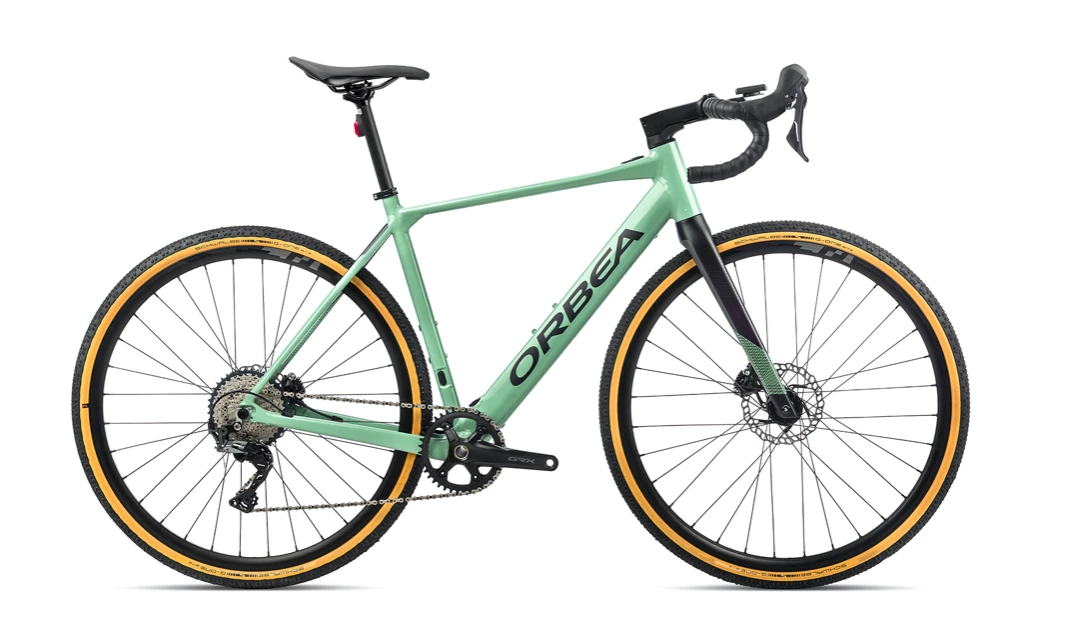

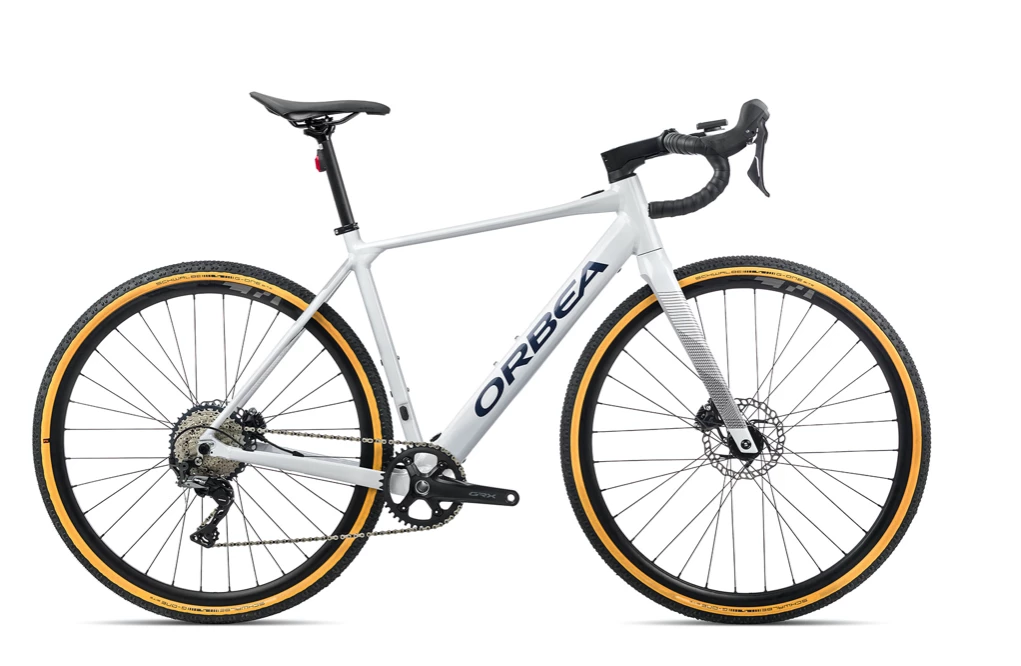

- FRAME Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135×9 QR, Flat Mount disc mount, 700×40 maximun tyre, 1″ 1/2 semiintegrated head set, 41×86,5 Pressfit botton bracket.
- FORK Gain Hydro carbon fork, full carbon, 1-1/8″ – 1.5″ tappered head tube compatible, 700×40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
- CRANKSET Shimano GRX RX600 40t
- HEADSET Acros Alloy 1-1/2″ Internal Cable Routing
- HANDLEBAR OC GR30 Gravel, Reach 80, Drop 125, Flare 12, w/Di2 hole
- STEM OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
- SHIFTERS Shimano ST-RX600
- BRAKES Shimano RX400 Hydraulic disc
- CASSETTE Shimano CS-M7000 11-40t 11-Speed
- REAR DERAILLEUR Shimano RX812 GS
- CHAIN KMC X11
- WHEELS Ready GR
- TYRES Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic Skin
- SEATPOST OC 27.2 Offset 0, for integrated light
- SADDLE Fizik Aliante R5
- FRONT LIGHT Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
- REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens
- MOTOR Ebikemotion X35 Plus 25kmh
- BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
- HANDLEBAR PLUGS Orbea Eva
- DISPLAY OC monochrome ANT+ LEV
- CHARGER Ebikemotion X35
- REMOTE Ebikemotion iWoc ONE
- FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
*We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
