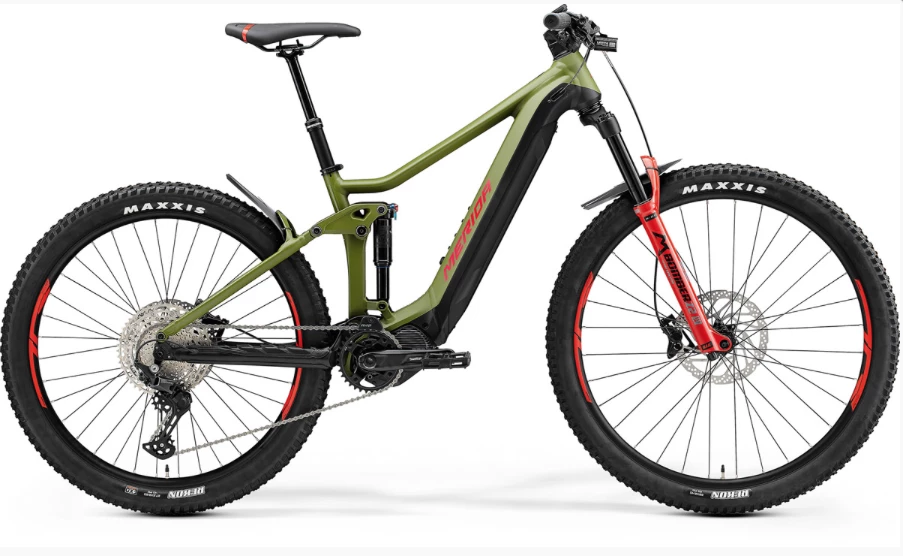

Top 10 🛒 Step Over MERIDA EONE FORTY 500 EMTB 2022 🎉

Technologies

HFS – HYDRO FORMING SYSTEM

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.

X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.

INTERNAL CABLE ROUTING
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

RACELITE 61 ALUMINIUM

We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.

K-MOUNT

Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

CASTING MOTOR BRACKET

Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.

INTERNAL BLOCK

First introduced in our 2015 NINETY-SIX, the new version of the ‘Internal Block’ is incorporated directly in the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

ENERGY GUARD TWIST

Twist lock mechanism that is located at the top end of the ‘Energy Guard’ battery cover, for easy locking and unlocking of the protective internal battery cover.

Specs

FRAME	eONE-FORTY LITE III; MAT aluminium; 133 STR; 27.5×2.8″ max. WHS; 148×12 AST; intube
FORK	Marzocchi Z2 eMTB+; Air; 140 STR; Tapered; 51mm fork offset; 29×2.6″ max WHS
REAR SHOCK	SUNTOUR RS-EDGE-TR-LO-R8-M6; lockout
DRIVE UNIT	Shimano EP8; 85Nm
BATTERY	Shimano E8036 630Wh / Shimano E8035 504Wh for S only
BATTERY CHARGER	Shimano EC-E6002; 2A charging current
DISPLAY	Shimano SC-E5003A
REAR DERAILLEUR	Shimano Deore RDM5100 11
SHIFTERS	Shimano Deore M5100 11
DROPPER POST LEVER	Shimano SL -MT500-IL
BRAKE – FRONT	Shimano M4204; 4 piston
BRAKE – REAR	Shimano M4204; 4 piston
ROTOR – FRONT	Shimano RT30; 203 mm
ROTOR – REAR	Shimano RTEM300; 203 mm
CHAINRING	Shimano CRE70-B; 34 ATC
CRANK	Shimano FCEM600; 165 mm for all sizes
CHAIN	KMC e11T EPT
CASSETTE	Shimano M5100; 11-51 ATC; 11 GER
PEDALS	VP VPE-537
HANDLEBAR	MERIDA EXPERT eTR; 780 WHB; 20 RHB
HANDLEBAR STEM	MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
STEM LENGTH	50 mm all sizes
SEAT POST	MERIDA COMP TR; 30.9 DSP; 0 SSB; M 100 SPT – L/XL 125 SPT – XXL 150 SPT
SADDLE	MERIDA COMP SL; V-mount
HUB – FRONT	Shimano MT400-B; 110×15 WHF; 32 SPH; Centerlock
HUB – REAR	Shimano MT400-B; 148×12 WHR; 36 SPH; Centerlock
AXLE – REAR	MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIMS	MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
TYRE – FRONT	MAXXIS REKON; 29×2.4″; wire; DUAL
TYRE – REAR	MAXXIS REKON; 27.5×2.6″; wire; EXO
LIGHT FRONT	LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
LIGHT REAR	USB REAR Light CG-214RG
MAX. WEIGHT	140 kg
