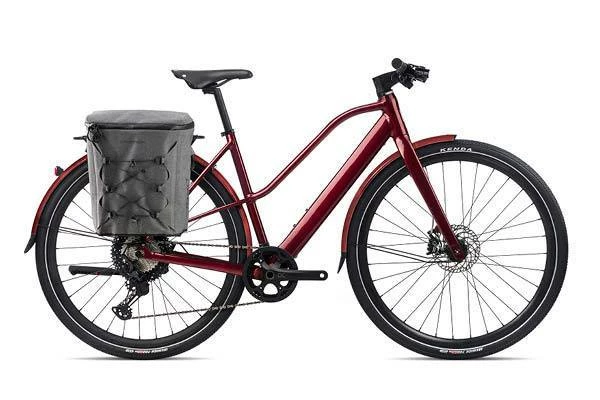

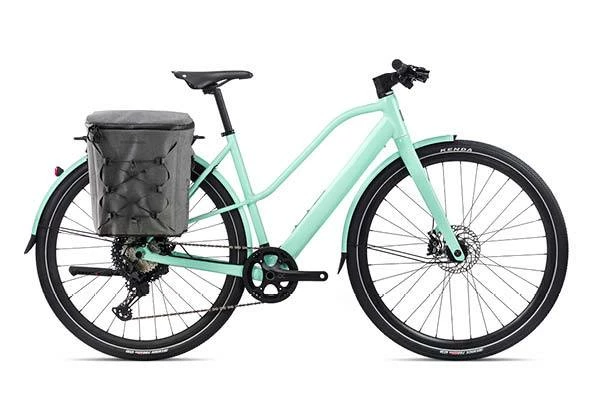

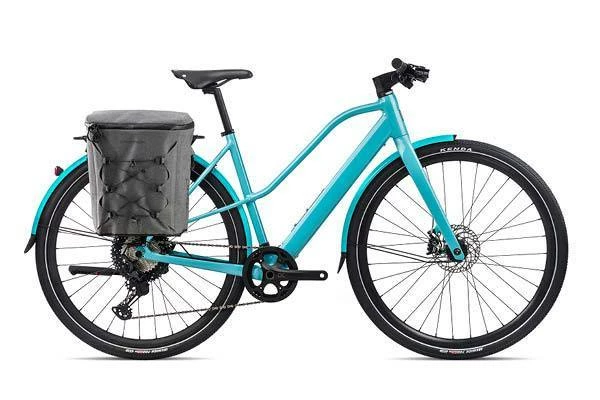

Brand new 👏 Orbea Vibe MID H10 EQ Step Through Ebikes 😍

The H10 model series offers the “naked” bike as well as an EQ model with mudguards, headlights and a rear rack. On the H10 models the mudguards are painted in the frame color and there is also a MUD model — this comes with mudguards and headlight, but without a rack. If you want one, grab the H10 EQ and get a practical luggage bag, which can easily be transformed into a backpack.

Orbea has developed a new transport concept for day-to-day life, relying on the spirit of functionality and simplicity of use that is transforming everything: the Vibe range. The new fully equipped urban electric bike with an aluminum frame Orbea Vibe H10 EQ 2021  is sophisticated and blends in with your aesthetic sense without compromising it. With its built-in motor, battery and electronics, Vibe is light and fun, perfectly suited to the city lifestyle, and simple. Designed for those who want to be up-to-date and try new technologies, reliable, comfortable and incredibly flexible, Vibe is a revolutionary platform built for cyclists who want more style, autonomy and freedom.

Specifications

• FRAME Orbea Vibe Mixtie Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×40 maximun tyre, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible
• FORK Orbea Vibe carbon fork, full carbon, 1-1/5, 700×40 maximun tyre, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
• CRANKSET OC 42t, w/Chainguard
• HEADSET Acros Alloy 1-1/2″ Internal Cable Routing
• HANDLEBAR Alloy 31.8mm 12mm Rise 700mm
• STEM OC1 31.8mm interface -6º
• SHIFTERS Shimano Deore M6100
• BRAKES Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
• CASSETTE Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
• REAR DERAILLEUR Shimano XT M8100 SGS Shadow Plus
• CHAIN KMC X12
• WHEELS Ready GR
• TYRES Kenda K1052 700x45C Reflective type TLR
• SEATPOST Alloy 27.2 Offset 20
• SADDLE Brooks Cambium C15 283×140
• REAR CARRIER Orbea Vibe rear luggage carrier (Max:15Kg)
• CARRIER ACCESSORIES OC, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective.
• MUDGUARD CURANA Apollo 55mm
• FRONT POSITION LIGHT Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
• FRONT LIGHT Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens
• REAR LIGHT Lezyne FENDER STVZO
• QUICK STAND Ursus Mooi R90 rear alloy adjustable
• MOTOR Ebikemotion X35 Plus 25kmh
• BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
• GRIPS Brooks Comfort Cambium 130mm
• DISPLAY

  Consult other components

• CHARGER Ebikemotion X35
• REMOTE2 Ebikemotion iWoc TRIO
• FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
• VIBE SHEET MYO LITE
• BELL Knog OI Classic
