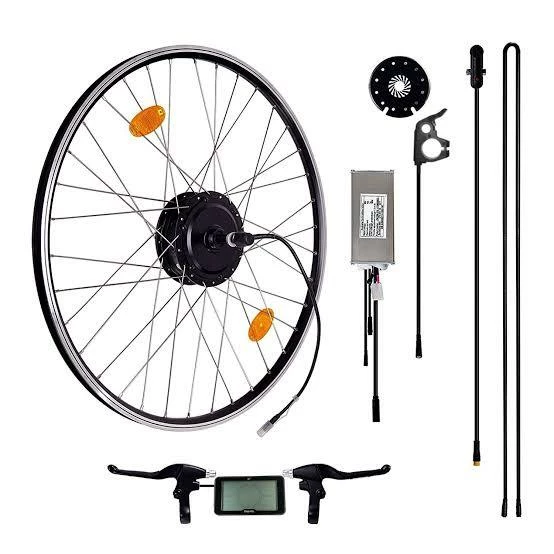

Best deal 🔔 NCM Electric Conversion Kit – BATTERY SOLD SEPARATELY Convert Your Bike 🎉

Features

• Motor Das-Kit X-15 Rear Motor Wheel (55Nm), black, 36V 250W, planetary gear
• Sprocket Ready for freewheel sprocket (up to 7-speed) Brake 6-hole disc brake mount (disc not included), rim brake possible to be used.
• Display & Throttle: Das-Kit Display C7BB-10 incl. backlight, display extension cable , 6 Assistant Levels, Thumb Throttle included
• Controller Sinus Wave Controller 31V, Current 8A, maximum current 17A (1 Sec.), Connections: Motor, Battery, Display, Front light up to 42V
• PAS-Disc (left side only) PAS-Disc (12 magnets) Installation on the right side of the bottom bracket. For an installation on the left side, a special Hollowtech & Octalink Sensor is needed.
• PAS-Sensor (left side only) Easy installation, for example at bicycle frame.
• Brake Levers Artek brake levers, cut-off sensor on the left side
• Spokes: Stainless steel
• Rim :hollow section type rim [black]
• Fixing Cable ties included
• Weight Rear wheel motor including rim: approx. 4,7kg

Dimensions

• Controller: L x H x W = approx. 9cm  x 6cm x 2.7 cm
• Rim size: 26, 27.5 or 28 inch depending on selection
• Wheel rim max outer dimensions: 26″ = 580mm, 27.5″ = 596mm, 28″ = 630mm
• Cable length from Display to Controller: 190 cm
• PAS sensor cable length: 95cm
• Required gap between PAS Disc and PAS sensor: approx. 5-7mm
• Width of rim at outer edge: 25mm
