New 👍 Mixtie Unisex MERIDA EBIG TOUR 400 EQ 2022 🛒

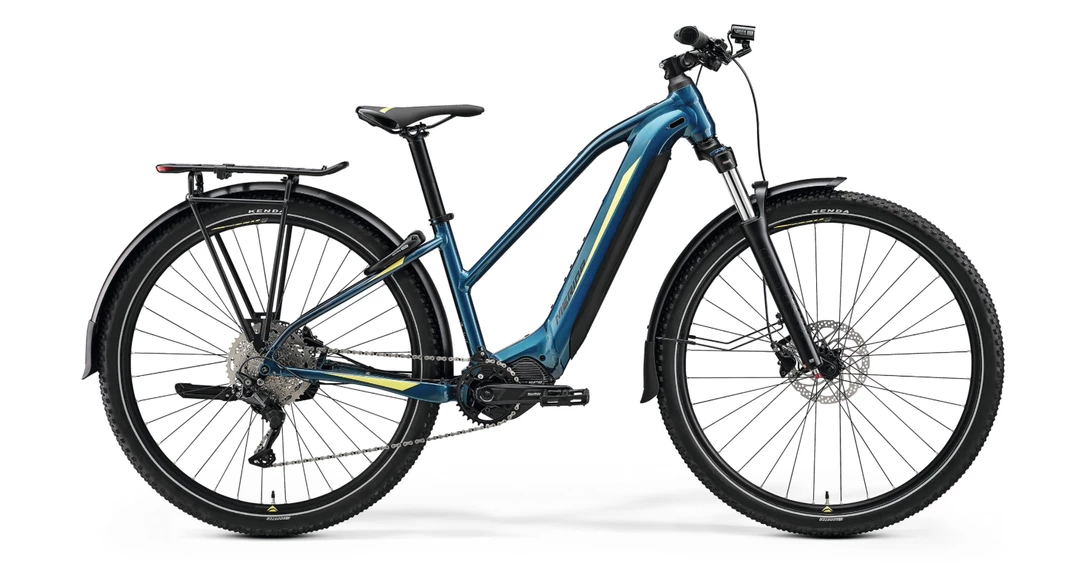

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 400 EQ does just that, with the latest Shimano EP8 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 630 Wh battery and generous standard fit equipment including mudguards and lighting have your everyday needs covered, so there’s no need to compromise.

Are practicality and excitement mutually exclusive? We don’t think so – and neither does the eBIG.TOUR. It’s a reliable day-to-day companion for riding to work that’s equally happy taking you on big adventures off the beaten track, thanks to a winning combination of mountain bike inspired geometry with low step-through frame practicality. A powerful and smooth Shimano pedal-assist motor is integrated cleanly into the aluminium frame, while a suspension fork and high-volume tyres provide comfort and safety. Add in standard fit mudguards, racks, lighting, wheel lock and a kickstand plus long-lasting 630 Wh battery and you’ll realise you’ve got the best of all worlds.

• Lightweight aluminium frame with integrated 630 Wh battery and low step-through frame design
• Powerful and smooth Shimano EP8 drive unit
• Suntour suspension fork for improved comfort and control
• Standard fit mudguards, rack, lights, wheel lock and kickstand
• 29er wheels with high volume tyres can handle city or countryside terrain
• Smooth Shimano drivetrain and powerful disc brakes

Technologies

HFS – HYDRO FORMING SYSTEM

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.

X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.

INTERNAL CABLE ROUTING
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

PROLITE 66 TRIPLE BUTTED ALUMINUM

K-MOUNT

Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

CASTING MOTOR BRACKET

Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.

ENERGY GUARD TWIST

Twist lock mechanism that is located at the top end of the ‘Energy Guard’ battery cover, for easy locking and unlocking of the protective internal battery cover.

F-MOUNT



‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.

C-MOUNT

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Specs

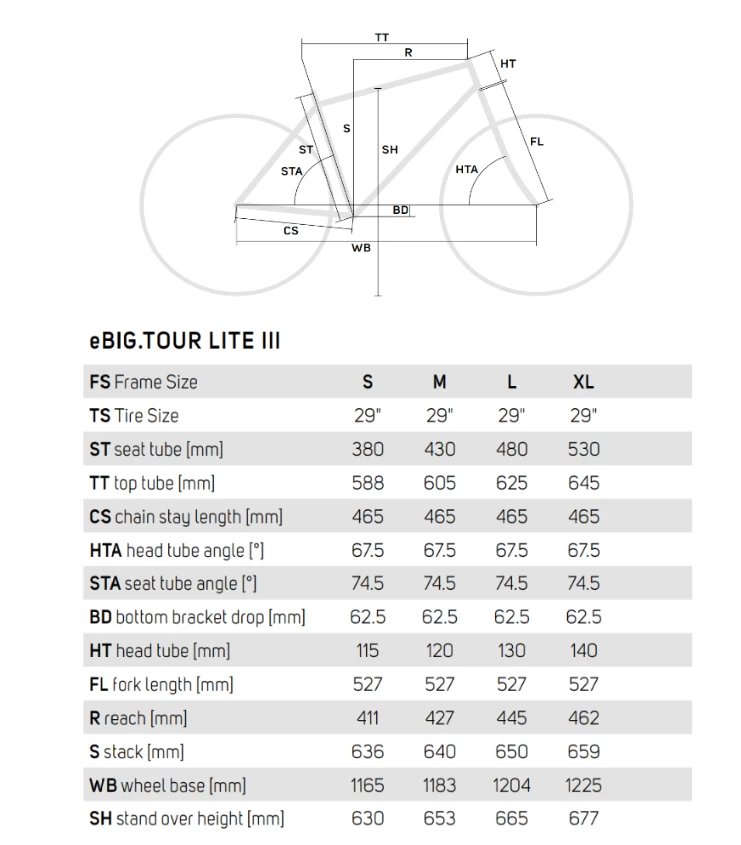

01. FRAME	eBIG.TOUR LITE III; MAT aluminium; 29×2.35″ without fender max./ 29″x2.25″ with fender max. WHS; 148×12 AST; intube
02. SIZES	S-M-L-XL
03. FORK	Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29×2.4″ max WHS
04. DRIVE UNIT	Shimano EP8; 85Nm
05. BATTERY	Shimano E8036; 630Wh
06. BATTERY CHARGER	Shimano EC-E6002; 2A charging current
07. DISPLAY	Shimano SC-E5003A
08. REAR DERAILLEUR	Shimano Deore M5120; SGS
09. SHIFTERS	Shimano Deore M4100
10. BRAKE – FRONT	Shimano MT-200; 2 piston
11. BRAKE – REAR	Shimano MT-200; 2 piston
12. ROTOR – FRONT	Shimano RT30; 180 mm
13. ROTOR – REAR	Shimano RTEM300; 180 mm
14. CHAINWHEEL	Shimano CRE70-B; 34 ATC
15. CRANK/SIZE	Shimano FCEM600; 165 mm for all sizes
16. CHAIN	KMC e10s
17. CASSETTE	Shimano M4100; 11-46 ATC; 10 GER
18. PEDALS	VP VPE-537
19. HANDLEBAR	MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB
20. HANDLEBAR STEM	MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
21. STEM LENGTH	90 mm all sizes
22. SEAT POST	MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
23. SADDLE	MERIDA EXPERT TK; V-mount
24. HUB – FRONT	Shimano MT400-B; 110×15 WHF; 32 SPH; Centerlock
25. HUB – REAR	Shimano MT400-B; 148×12 WHR; 36 SPH; Centerlock
26. AXLE – REAR	MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
27. RIMS	MERIDA COMP CC; 20 IWR; MAT aluminium
28. TYRES	KENDA Booster; 29×2.2″; wire
29. FENDERS	Sunnywheel SW-FA311-65A/ SW-FA311-65E1
30. KICKSTAND	CL-KA98, 29″
31. LIGHT – FRONTRONTRONT	LEZYNE E-BIKE HECTO STVZO E65, X-Lock stem mount
32. LIGHT – REAREAREAR	Spanninga Commuter GLOW XE
33. MAX RIDER WEIGHT	140kg
