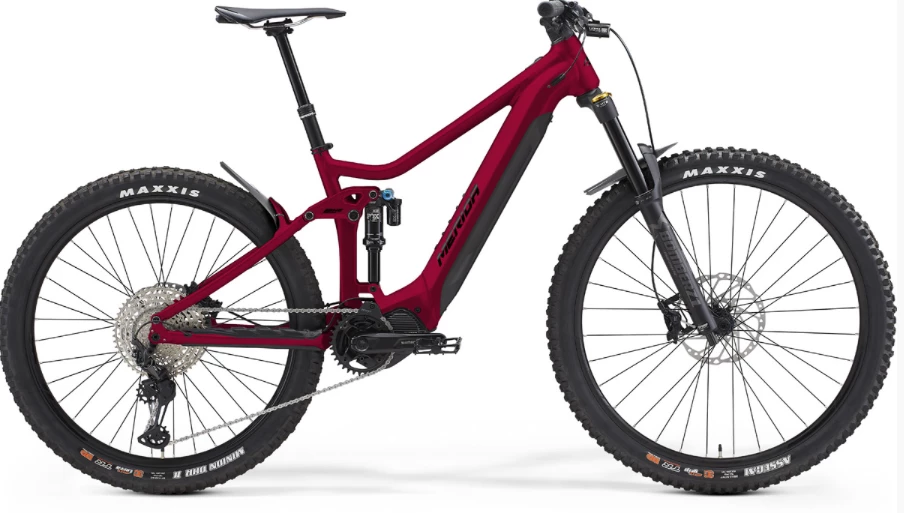

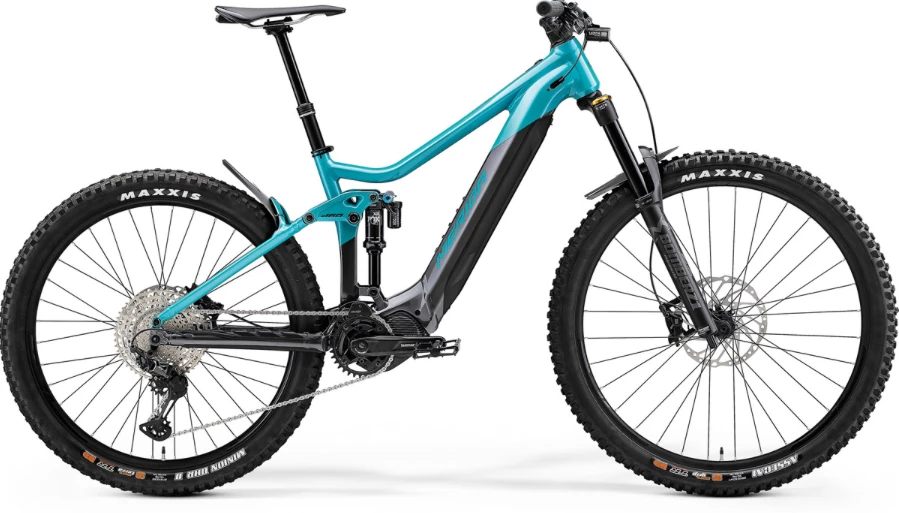

A master in all categories. The MERIDA eONE-SIXTY 700 strikes a fine balance between composure and agility, delivering an impressive performance on all types of descents yet still offering lots of comfort on long rides. Regardless of your riding skills, the MERIDA eONE-SIXTY is an excellent all-rounder and only reveals some weaknesses uphill. The Shimano EP8 motor is neatly integrated into the well-thought-out and high-quality frame.
Comes equipped with the new EP8 motor from Shimano STEPS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.
First introduced in 2015, the e-bike version of the ‘Internal Block’ is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

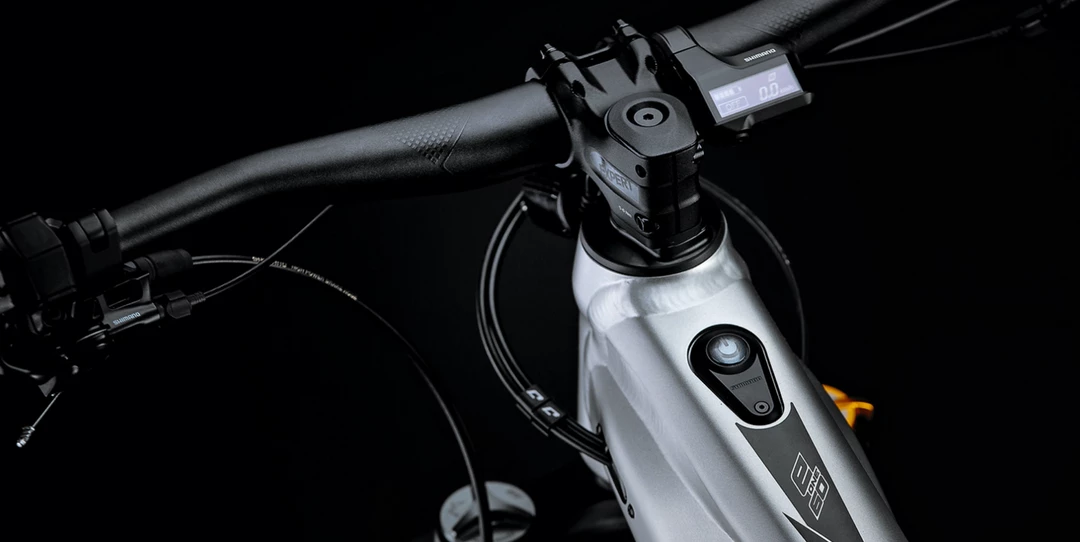

The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.
To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5″ tyre and a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction.
Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.
Technologies
HFS – HYDRO FORMING SYSTEM
Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.
X-TAPER HEADTUBE
Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.
SMOOTH WELDING
Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.
INTERNAL CABLE ROUTING
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.
SMART ENTRY
Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.
DI2 READY
Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.
RACELITE 61 ALUMINIUM
We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.
K-MOUNT
Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).
CASTING MOTOR BRACKET
Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.
INTERNAL BLOCK
First introduced in our 2015 NINETY-SIX, the new version of the ‘Internal Block’ is incorporated directly in the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.
ENERGY GUARD TWIST
Twist lock mechanism that is located at the top end of the ‘Energy Guard’ battery cover, for easy locking and unlocking of the protective internal battery cover.
Specs

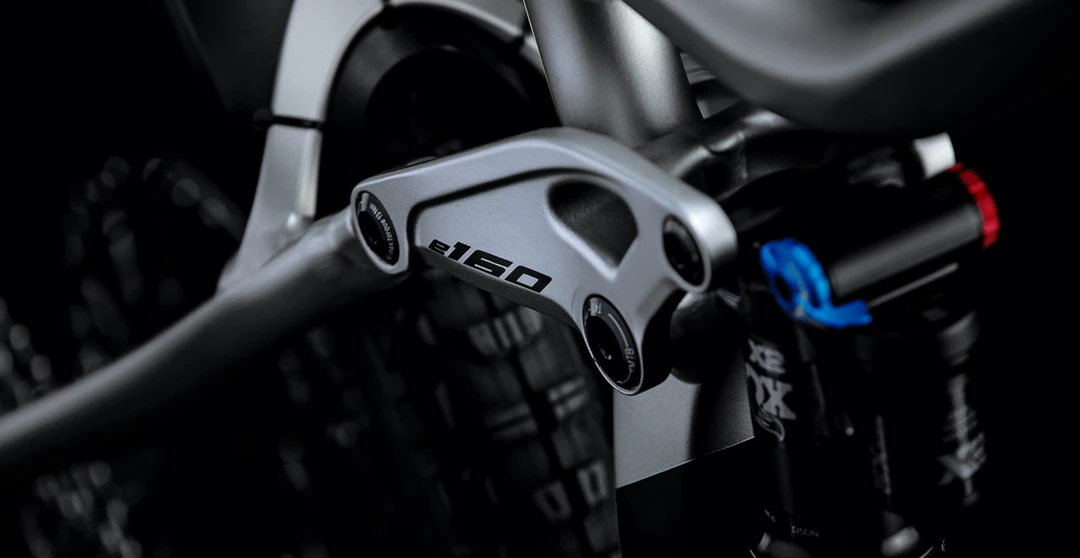

| FRAME | FRAME eONE-SIXTY LITE III material: aluminium 150mm suspension travel 27.5×2.8″ max. wheelsize 148x12mm axle standard intube |
| FRAME SIZE | XS, S, M, L, XL |
| COLOR | METALLIC TEAL/DARK SILVER |
| FORK | Marzocchi Z1 Ebike+ Air 160mm suspension travel Tapered 51mm fork offset 29×2.6″ max wheelsize |
| SHOCK | FOX Float DPX2 Performance platform |
| BRAKES | Shimano SLX 4 piston |
| HEADSET | MERIDA-8152 |
| HANDLEBAR | MERIDA EXPERT eTR 780mm width 20mm rise |
| HANDLEBAR STEM | MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes |
| GRIP | MERIDA EXPERT EC |
| DERAILLEUR (R) | Shimano XT RDM8100 Shadow+ 12 |
| SHIFTERS |
Shimano SL -MT500-IL / Shimano DEORE M6100 12 |
| SEAT POST |
MERIDA EXPERT TR 30.9mm diameter 0mm setback XS: 100mm travel seatpost – S/M 150mm travel seatpost – L/XL 170mm travel seatpost |
| SEAT CLAMP | MERIDA EXPERT clamp |
| SADDLE | MERIDA EXPERT CC V-mount |
| PEDAL | VP VPE-527 |
| CHAIN |
KMC e12T EPT |
| CHAINWHEEL | Shimano CRE80-12-B 34 teeth Shimano FCEM600 |
| CRANK | Shimano FCEM600 165 mm for all sizes |
| FREEWHEEL | Shimano M6100 10-51 teeth 12 speed |
| HUBS |
Shimano SLX 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub, 36 spoke holes Centerlock |
| RIM |
MERIDA EXPERT TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) |
| TYRE FRONT | Maxxis Assegai 29×2.5 “ fold TR EXO+ 3C MaxxGrip |
| TYRE REAR | Maxxis Agressor 27.5×2.5″ fold TR DD Dual |
| AXLES |
MERIDA EXPERT TR including removeable lever, 6/4mm allen key |
| SPOKES | Black stainless |

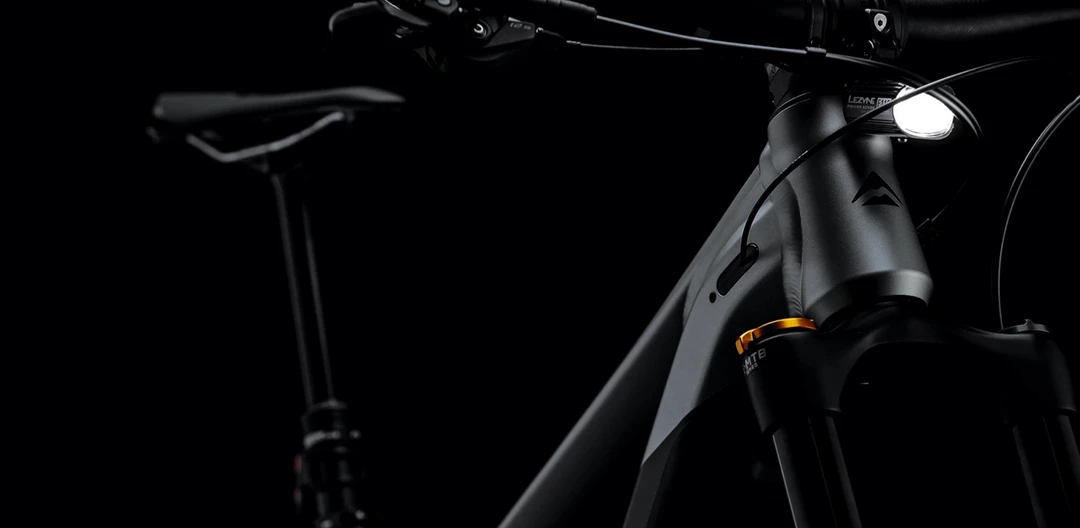

| LIGHT FRONT |
LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| LIGHT REAR | USB REAR Light CG-214RG |

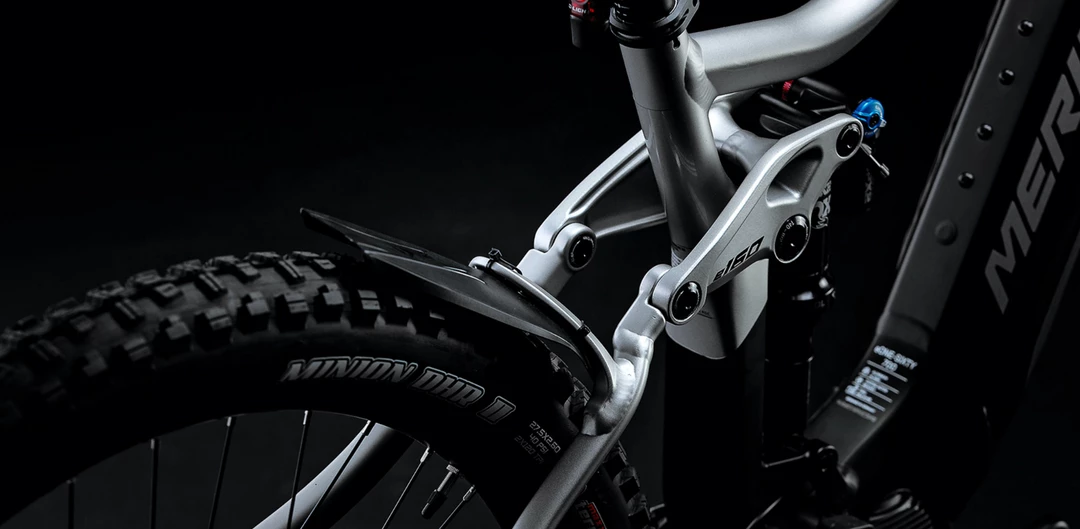

| FENDER | C093-02F + C093-02R |
| DRIVE UNIT | Shimano EP8 85Nm |
| BATTERY |
Shimano E8036 630Wh / E8035 504Wh XS |
| DISPLAY | Shimano SC-E7000 |
| WEIGHT |
24.04 kg weighed with 29″ wheels and at frame size M, without pedals, incl. lights |
| MAX. WEIGHT | 140 kg |
| Frame Size | X – Small, Small, Medium, Large, X – Large |
|---|---|
| Colour | Metallic Teal / Dark Silver, Dark Strawberry (Black) |
