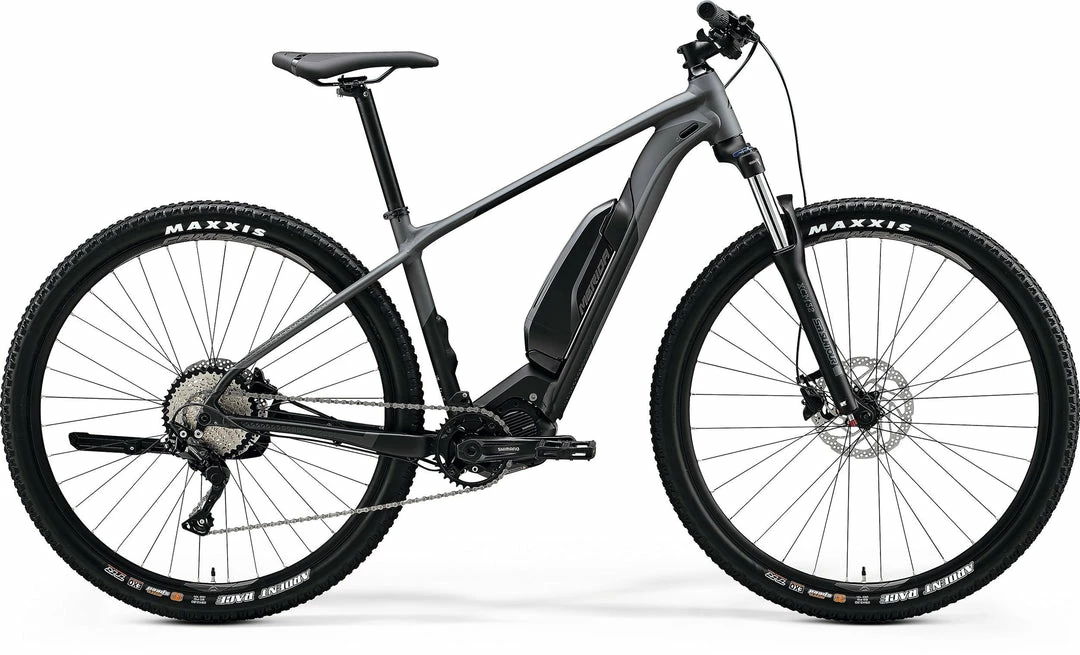

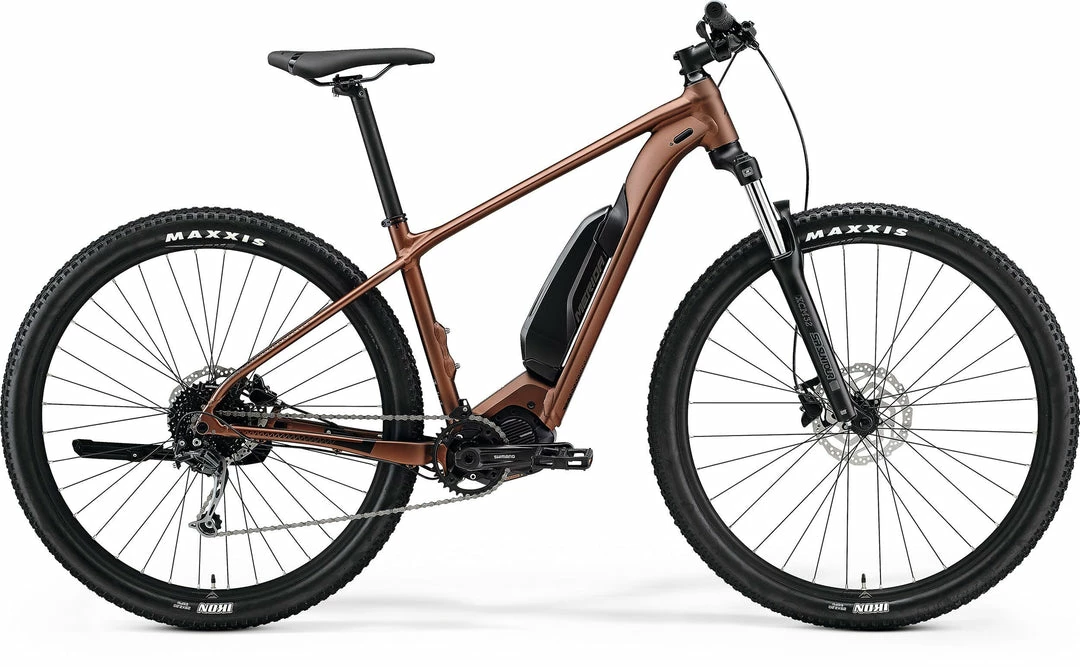

Deals 💯 Merida EBIG.NINE 300SE Hard Tail 2021 Step Over ⭐
Original price was: $514.00.$93.99Current price is: $93.99.
- There are quality problems, free return and exchange
- Safe Shopping Guaranteed
- Friendly, efficient service, always online.
- Fast and Secure Payments
HFS Hydroforming prolite 66butted aluminium 29er hardtail frame with a sporty yet comfortable geometry. “smart entry” cable routing for rattle free running. The frame features the casting motor bracket creating an integrated appearance of the motor into the frame as well as providing an extremely strong connection between frame and motor. Comes with integrated fixings for mudguards and kickstand.
The best of two worlds: externally shaped head tube with bigger diameter at the bottom and weight saving smaller diameter at the top. ‘X-Taper Headtubes’ always come with tapered forks or correct adapters fitted. Result: superb stiffness and precise steering even in the toughest conditions without increasing the weight of the frame unnecessarily.
Due to the widening of the hub spacing by 6mm, the spoke angles become flatter resulting in a stiffer and stronger wheel. In particular on 29er and 650b+ wheels, and paired with the stiffness increasing attributes of a through axle, this is hugely desirable. Besides that, the wider hubs and cranks with wider bottom brackets push the chain line further outwards and enable extra short chain stays for a more agile geometry.
Internal cable routing perfected: Up to this point, the routing of cables inside frame tubes often had the unwanted side effect that they were able to move and produce noise. Our ‘Smart Entry’ allows the cables to be clamped under tension, resulting in rattle free cables even when it is getting rough. All cable inlets are completely interchangeable to deal with any kind of set up; Di2, hydraulic hoses, brake and gear cable housings etc.
Like WorldTour pro riders, more and more technology-loving road riders trust in Shimano’s electronic Di2 shifting system, which is characterized by high reliability and efficient, effortless operability. Bikes/frames with the symbol “Di2 Ready” are optimally prepared for the installation of this technology – especially with a battery mounting possibility below the chain stay or in the seat post.
“Chain Stay Post Mount Disc” – this technology is the result of three findings. First, a brake mount positioned within the frame triangle optimally protects the brake from external influences. Second, the caliper is supported by the chain stay and is therefore able to distribute the occurring physical forces in an ideal way. Third, internally routed cables can reach the brake neatly from the chain stay.
Elaborately shaped frame designs with special inlets and outlets for internally routed brake and/or shifter cables. “Clean” in a double sense: The bike looks uncluttered while the cables are protected effectively from moisture and dirt.
Besides top functionality, MERIDA frames also have to offer a convincing visual appearance. The second welding process during Smooth Welding evens the connecting welding seam – an elaborate concept for a brilliant look without compromises to stability.
MERIDA’s premium alloy represents extremely durable and light aluminium of high-end quality. Triple-butted wall thicknesses result not only in exciting frame designs: First of all, they offer an optimum Stiffness-to-Weight (STW) ratio.
The mechanical TFS process works from the outside to the inside. In contrast, the complex Hydroforming concept shapes the frame by pushing hot oil under hydraulic high pressure from the inside to the outside. Material: Prolite 66 aluminium.
Video
Specs
|
01. FRAME |
eBIG.NINE LITE; MAT aluminium; 29″ WHS; 148×12 AST; external; max. 504 Wh |
|
02. SIZES |
M-L-XL |
|
03. FORK |
Suntour XCM32 DS; Coil; 100mm; Tapered; 47mm fork offset |
|
04. DRIVE UNIT |
Shimano E7000; 60Nm |
|
05. BATTERY |
Shimano E8010; 504Wh |
|
06. BATTERY CHARGER |
Shimano EC-E6002; 2A |
|
07. DISPLAY |
Shimano SC-E5000 |
|
08. REAR DERAILLEUR |
Shimano Deore RDM592 9 |
|
09. SHIFTERS |
Shimano Alivio M3100 9 |
|
10. BRAKE-FRONT |
Shimano MT-200; 2 piston |
|
11. BRAKE-REAR |
Shimano MT-200; 2 piston |
|
12. ROTOR-FRONT |
Shimano RT10; 180 mm |
|
13. ROTOR-REAR |
Shimano RT10; 180 mm |
|
14. CHAINWHEEL |
Shimano CRE70-B; 34 ATC |
|
15. CRANK/SIZE |
Shimano FC-E8000; 165 mm for all sizes |
|
16. CHAIN |
Shimano HG53 |
|
17. CASSETTE |
Shimano HG200; 11-36 ATC; 9 Speed |
|
18. PEDALS |
VP; VPE-537 |
|
19. HANDLEBAR |
MERIDA Expert CC; MAT aluminium; 720 WHB; 10 RHB |
|
20. HANDLEBAR STEM |
MERIDA Expert CC; MAT aluminium; 31.8 DSH; 6 ASD |
|
21. STEM LENGTH |
80mm-M, 90mm-L, 100mm-XL |
|
22. SEAT POST |
MERIDA Expert; MAT aluminium; 30.9 DSP; 15 SSB |
|
23. SADDLE |
MERIDA Comp CC; V-mount |
|
24. HUB-FRONT |
Shimano MT400; 110×15 WHF; 32 SPH; Centerlock |
|
25. HUB-REAR |
Shimano MT400-B; 148×12 WHR; 36 SPH; Centerlock |
|
26. AXLE-REAR |
MERIDA COMP TR; including removeable lever, 6/4mm allen key |
|
27. RIMS |
MERIDA COMP CC; 20 IWR; MAT aluminium |
|
28. TYRES |
Maxxis Ikon; 29×2.2″; kevlar bead |
|
31. KICKSTAND |
CL-KA98, 29″. |
